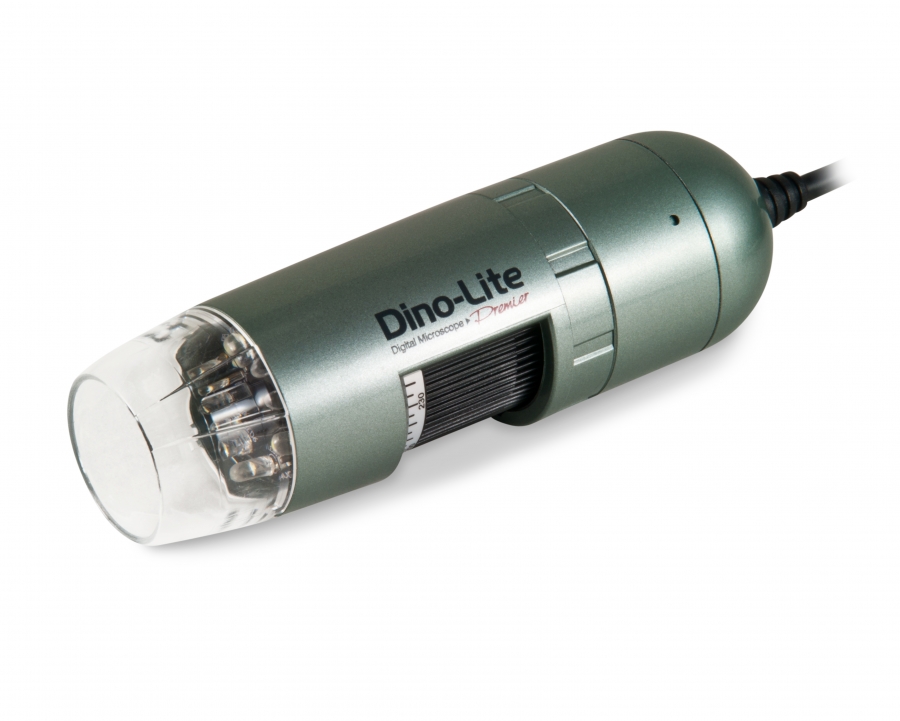

AM3113T

The AM3113T model from Dino-Lite offers all the features of the AM2111 but also provides access to advanced software measurement, 8 x white LED illumination with software on/off and the MicroTouch snapshot button allowing image capture to be triggered directly from the Dino-Lite.

Compared to the previous AM3013T model the AM3113T benefits from minor cosmetic enhancements and an integral USB cable strain relief. Functionally this AM3113T and AM3013T are identical. It is an affordable solution for industrial, scientific and business use.

Additional Info

  • Resolution: 640x480pixels (VGA)
  • Magnification: 10x ~ 60x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: No
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: Updated version of the AM3013T. Also replaces the older AM313 and AM313T models.
  • Field of View:
    M WD FOV (x) FOV (y)
    20 51.7 21.0 15.7
    30 24.1 14.0 10.5
    40 11.0 10.5 7.9
    50 3.8 8.4 6.3
    60 -0.6 7.0 5.2
    200 -0.4 2.1 1.6
    210 0.6 2.0 1.5
    220 1.7 1.9 1.4
    230 2.8 1.8 1.4

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
