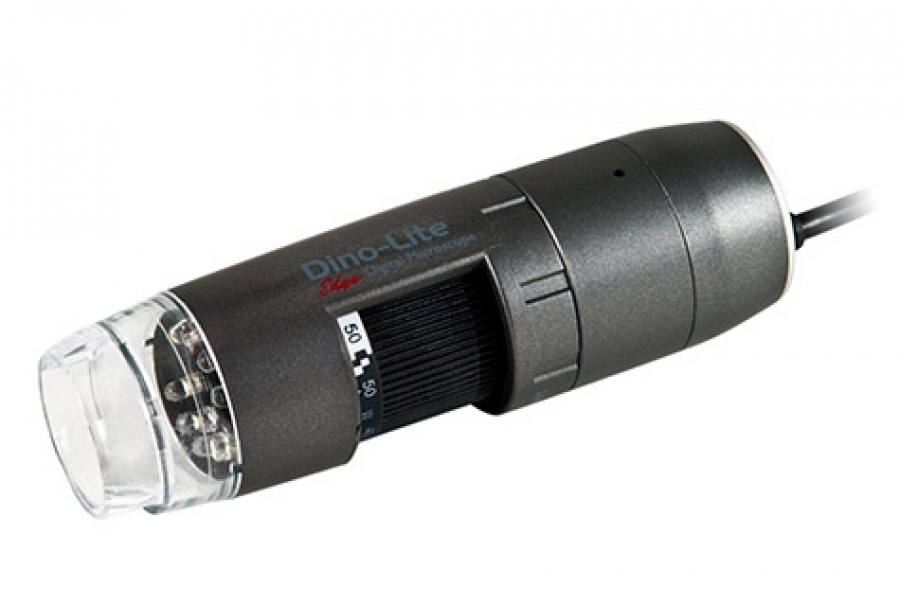

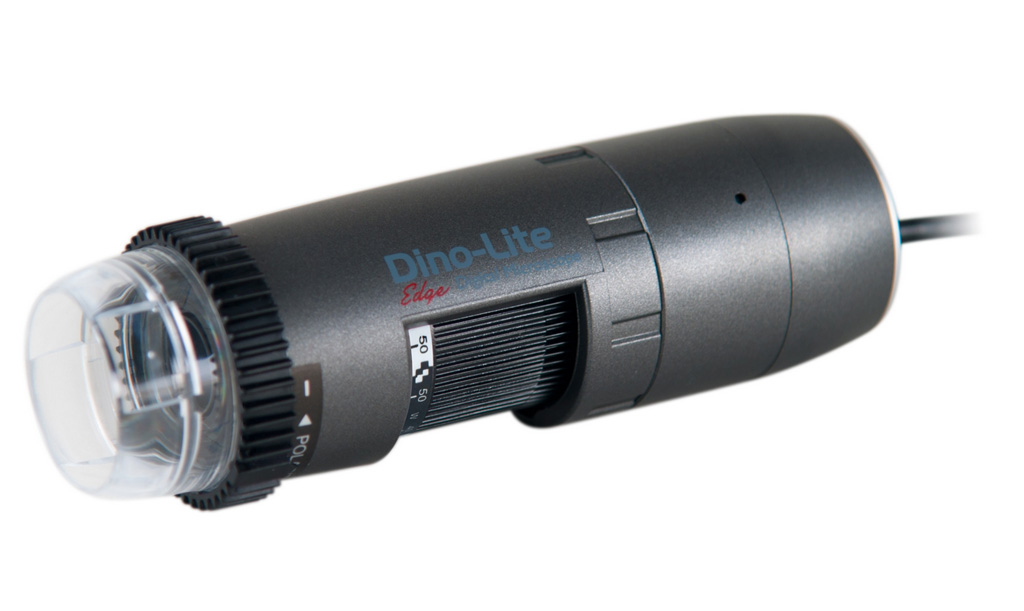

AM4115TW - Edge

The Dino-Lite Edge models provide superior image quality and a high level of flexibility due to the adaptable cap design.

  • 1.3 Megapixel resolution.
  • Versatility due to exchangeable caps
  • 10-50x Magnification
  • Macro zoom

USBMeasurementMag-10-50

Macromag-lockres-1-3

8-ledsexch-cap


This model can work with 2 magnification rates while maintaining the same working distance, making this the ideal model for macro view applications with a larger field of view and a zoom function to reveal smaller details. Different caps are supplied with the microscope making the Dino-Lite Edge the perfect choice for any professional application.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: Not applicable
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite

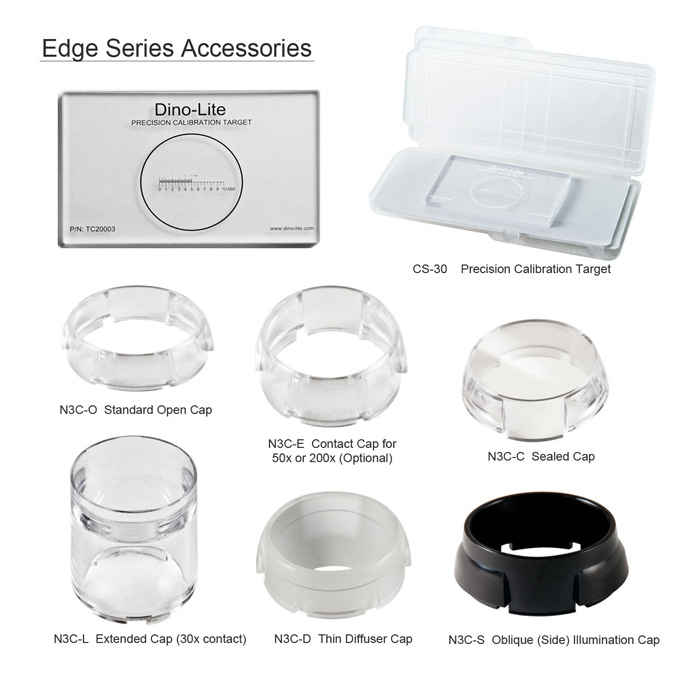

  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:



    T-Zone (Macro zoom/ Larger magnification)

    Magnification
    Working Distance FOV(x) FOV(y) DOF
    Listed values may differ slightly
          Unit = mm
    15 170 30 24 -
    20 120 23 19 -
    30 60 15 12 6
    40 30 11 9 4
    50 10 9 7 3

    W-Zone (Standard zoom/ Larger FOV)

    Magnification
    Working Distance FOV(x) FOV(y) DOF
    Listed values may differ slightly
          Unit = mm
    5 170 98 78 -
    10 60 41 33 -
    15 40 31 25 -
    20 30 25 20 -
    30 10 14 11 6
