AM5116ZTL

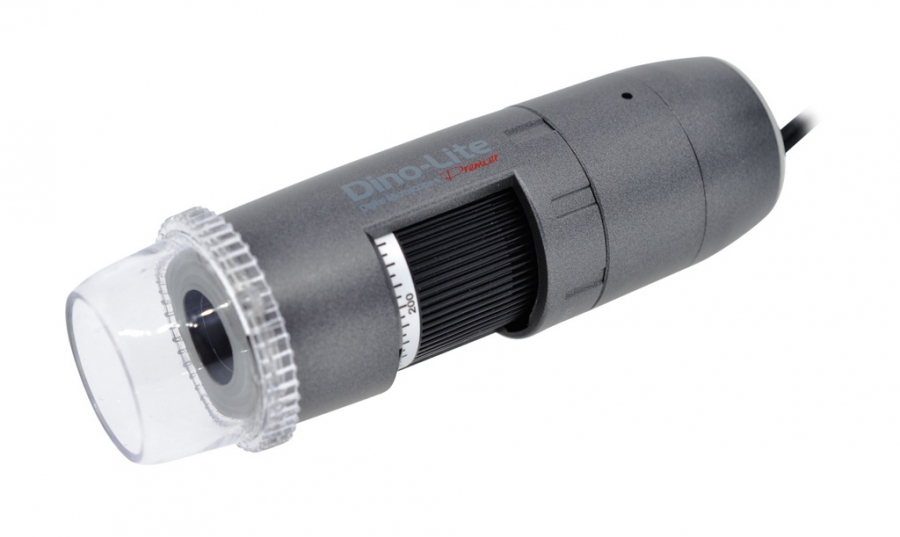

The Dino-Lite AM5116ZTL connects directly to a VGA screen via a VGA (D-SUB) connector. It offers a high frame rate of up to 60fps at 1024x768 (XGA) resolution, resulting in crystal clear images.

  • Direct VGA connection
  • With magnification lock
  • 10-90x Magnification & Long working distance
  • High 1024x768 resolution

VGA-connHigh-speedMag-10-90

mag-lockRes-10248-leds

PolariserILong-W-distance


Together with the long working distance of up to 15 centimetres the AM5116ZTL is the ideal choice in situations, where real time images are vital, such as working on PCB's or other miniature objects. By tapping the Microtouch sensor on the microscope, the image can be frozen for inspection of important details and by pressing the Microtouch sensor for 2 seconds the LEDs can be switched on and off. The built-in adjustable polarizer reduces glare and reflection on shiny objects, such as metal surfaces, electronics, plastics etc.

Additional Info

  • Resolution: 1024x768pixels
  • Magnification: 10-90x
  • Working Distance: Long Working Distance
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Video
  • Video Frame Rate: Up to 60 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Not applicable
  • Software: None
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance Field of View(x) Field of View(y) Depth of Field
    Listed values may differ slightly       Unit = mm
    20 160.5 19.8 14.9 6
    30 110.4 13.2 9.9 3.4
    40 86.7 9.9 7.4 2.2
    50 73.6 7.9 5.9 1.65
    60 65.7 6.6 5.0 -
    70 60.8 5.7 4.2 -
    80 57.8 5.0 3.7 -
    90 56.1 4.4 3.3 0.8
