AM2111

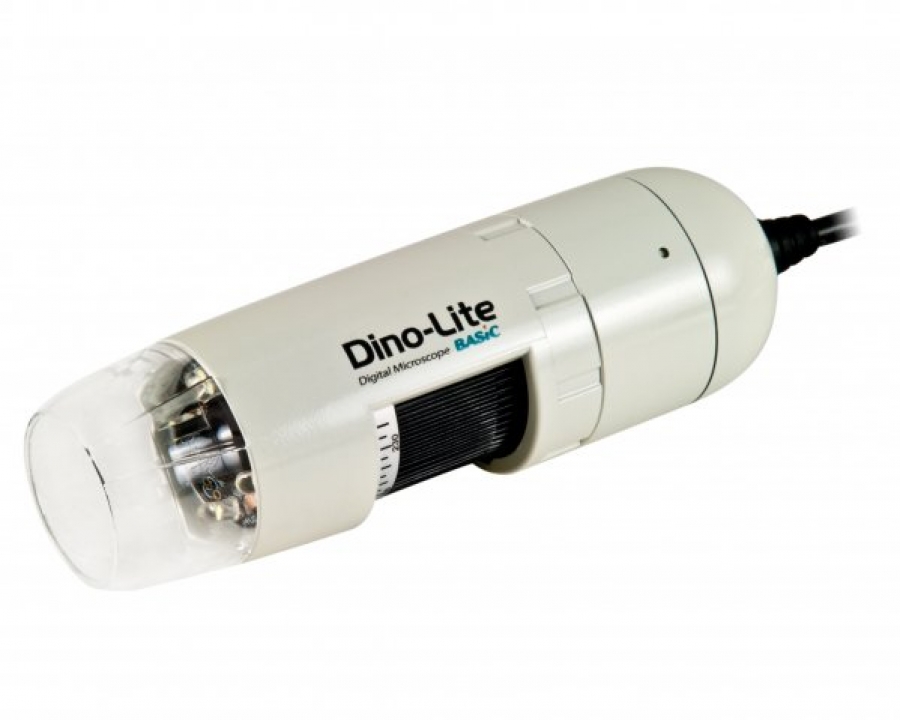

The AM2111 Dino-Lite Basic is the entry level Dino-Lite USB microscope and offers VGA resolution imaging (640x480) at 10x~60x and 200x magnification. The AM2111 is essentially the same as its predecessor, the AM2011, with the added benefit of an integral USB cable strain relief. The AM2111 model has also undergone a minor cosmetic re-design. As with all previous versions of this model the AM2111 is equipped with a high-speed USB 2.0 interface and provides 4 x white LED illumination (always on).

Additional Info

  • Resolution: 640x480pixels (VGA)
  • Magnification: 10x ~ 60x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 4
  • LED on/off switchable: No
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: No
  • Scroll lock: No
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: The AM2111 is the latest version of the AM2011, AM211 and AM311 models.
  • Field of View:
    M WD FOV (x) FOV (y)
    20 51.7 21.0 15.7
    30 24.1 14.0 10.5
    40 11.0 10.5 7.9
    50 3.8 8.4 6.3
    60 -0.6 7.0 5.2
    200 -0.4 2.1 1.6
    210 0.6 2.0 1.5
    220 1.7 1.9 1.4
    230 2.8 1.8 1.4

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
