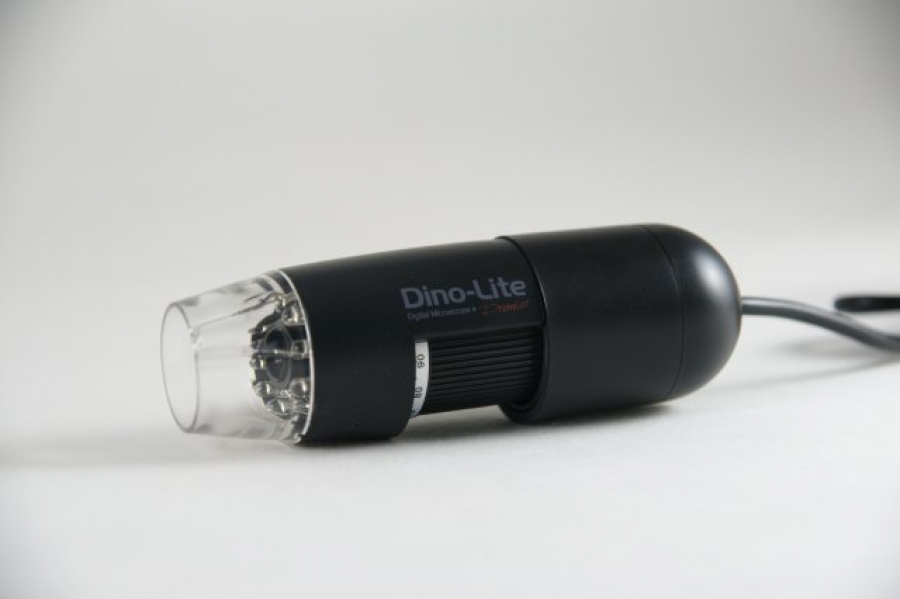

AM4012PTL

Dino-Lite television model with improved color rendering and long working distance. Possibility to turn the LED's on and off by using the sensor on the microscope. This model is connected to the television (PAL) instead of USB. This can be a major advantage in situations where real time images are vital, such as working on PCB's or other miniature objects. It can also be directly connected to a beamer or digital blackboard without using a PC.



Additional Info

  • Resolution: 628x586pixels
  • Magnification: 20x ~ 90x
  • Working Distance: Long Working Distance
  • Interface: TV Output (PAL)
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: No
  • Output: Not applicable
  • Video Frame Rate: Up to 25 frames-per-second
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: None
  • Compatibility: Not applicable
  • Software: None
  • JPEG Codec: None
  • Special:
    Power input 100~240V, 50/60 Hz (adapter included)
    Output adapter DC 5V, 800 mA
    Working temp -10°C ~ 50°C
  • Field of View:
    M WD FOV (x) FOV (y)
    20 151.0 19.9 15.0
    30 101.0 13.2 10.0
    40 77.2 9.9 7.5
    50 64.1 7.9 6.0
    60 56.2 6.6 5.0
    70 51.3 5.7 4.3
    80 48.3 5.0 3.8
    90 46.6 4.4 3.3

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
