AM412FVP

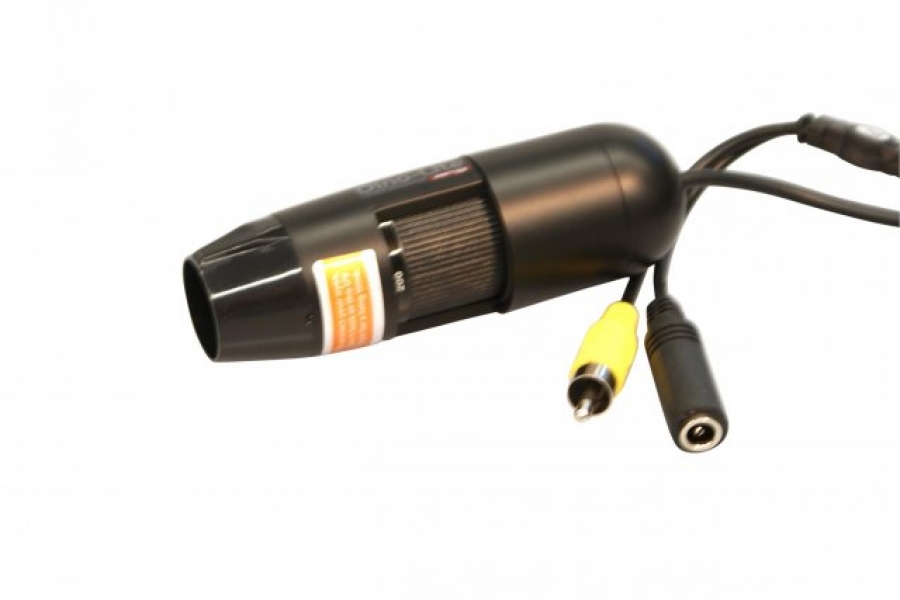

This model Dino-Lite AM-412 is connected to the television (PAL) instead of USB. This can be a major advantage in situations where real time images are vital, such as working on PCB's or other miniature objects. This model can be directly connected to a beamer or digital blackboard without using a PC. The AM412FVP has special UV lighting with 400 nm emission.

Additional Info

  • Resolution: 628x586pixels
  • Magnification: 10x ~ 60x, 200x
  • Working Distance: Standard
  • Interface: TV Output (PAL)
  • Nr. of LED's: 8
  • LED on/off switchable: No
  • LED color: UV
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: No
  • Scroll lock: No
  • Output: Not applicable
  • Video Frame Rate: Up to 25 frames-per-second
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: None
  • Compatibility: Not applicable
  • Software: None
  • JPEG Codec: None
  • Special:
    Power input 100~240V, 50/60 Hz (adapter included)
    Output adapter DC 5V, 800 mA
    Working temp -10°C ~ 50°C
  • Field of View:
    M WD FOV (x) FOV (y)
    20 51.7 19.9 15.0
    30 24.1 13.2 10.0
    40 11.0 9.9 7.5
    50 3.8 7.9 6.0
    60 -0.6 6.6 5.0
    200 -0.4 2.0 1.5
    210 0.6 1.9 1.4
    220 1.7 1.8 1.4
    230 2.8 1.7 1.3

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
