dino lite WF20 ENG2

AM423U

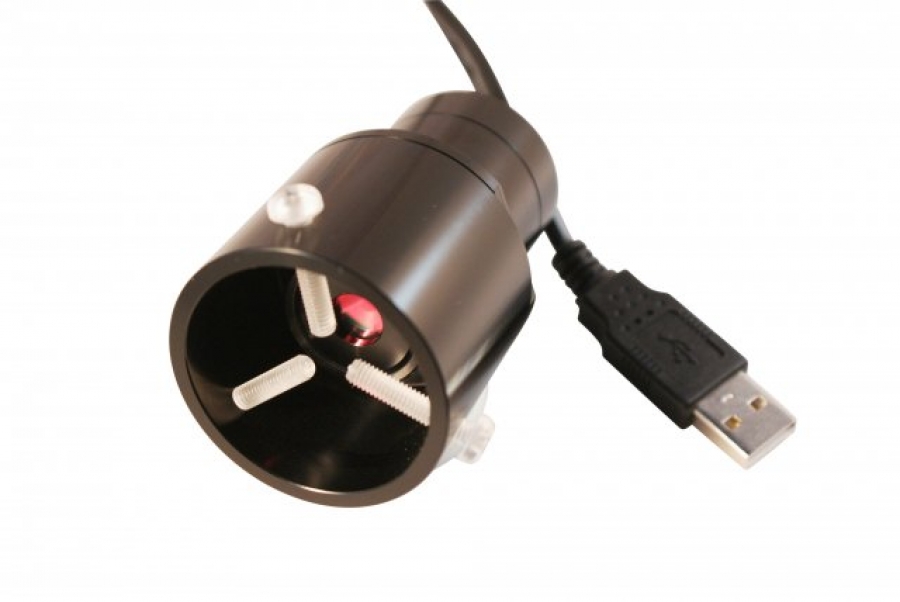

The Dino-Eye is a range of digital eyepiece cameras. You can replace the ocular (eyepiece) of regular microscopes with the Dino-Eye which turns the regular microscope into a digital microscope. The AM423U is an universal eyepiece version that can be adapted to any aperture by fitting over the existing ocular.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 7,2 times the magnification of objective
  • Working Distance: Not Applicable
  • Interface: USB 2.0
  • Nr. of LED's: Not applicable
  • LED on/off switchable: No
  • LED color: Not applicable
  • Material: Aluminium
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: No
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
