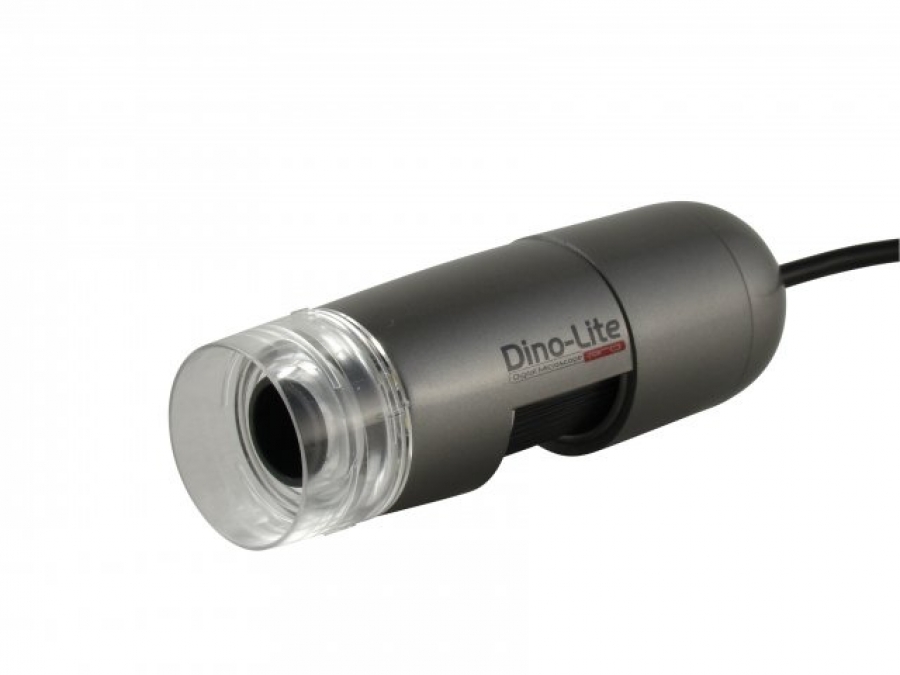

AD413T

1.3M pixel (1280x1024) USB microscope with exchangeable end caps and 10x-70x & 200x optics.

This standard working distance model is the AD series version of the Dino-Lite AM413T and offers the same professional grade features; 1.3M pixel image sensor, 8 x white LED illumination with software on/off, MicroTouch snapshot function and advanced software measurement with calibration. In addition the AD413T model has the benefit of exchangeable end caps and is supplied with both an open and closed cap, other specialist caps are available as accessories.

The Dino-Lite AD series feature exchangeable end caps allowing special function end caps to be fitted to the microscope. Removal of the end cap provides additional working distance and also allows a wider range of magnifications to be utilised when compared to the standard AM series models.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 10x ~ 70x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: No
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:
    M WD (with cap) WD (no cap) FOV (x) FOV (y)
    20 51.7 61.2 25.1 20.1
    30 24.1 33.6 16.8 13.4
    40 11.0 20.5 12.6 10.1
    50 3.8 13.2 10.1 8.0
    60 -0.6 8.9 8.4 6.7
    70   6.2 7.2 5.7
    80   4.5 6.3 5.0
    90   3.6 5.6 4.5
    100   3.1 5.0 4.0
    110   3.0 4.6 3.7
    120   3.0 4.2 3.4
    130   3.5 3.9 3.1
    140   4.0 3.6 2.9
    150   4.6 3.4 2.7
    160   5.3 3.1 2.5
    170   6.2 3.0 2.4
    180   7.1 2.8 2.2
    190   8.0 2.6 2.1
    200 -0.4 9.0 2.5 2.0
    210 0.6 10.1 2.4 1.9
    220 1.7 11.2 2.3 1.8
    230 2.8 12.3 2.2 1.7

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
