AM7025X

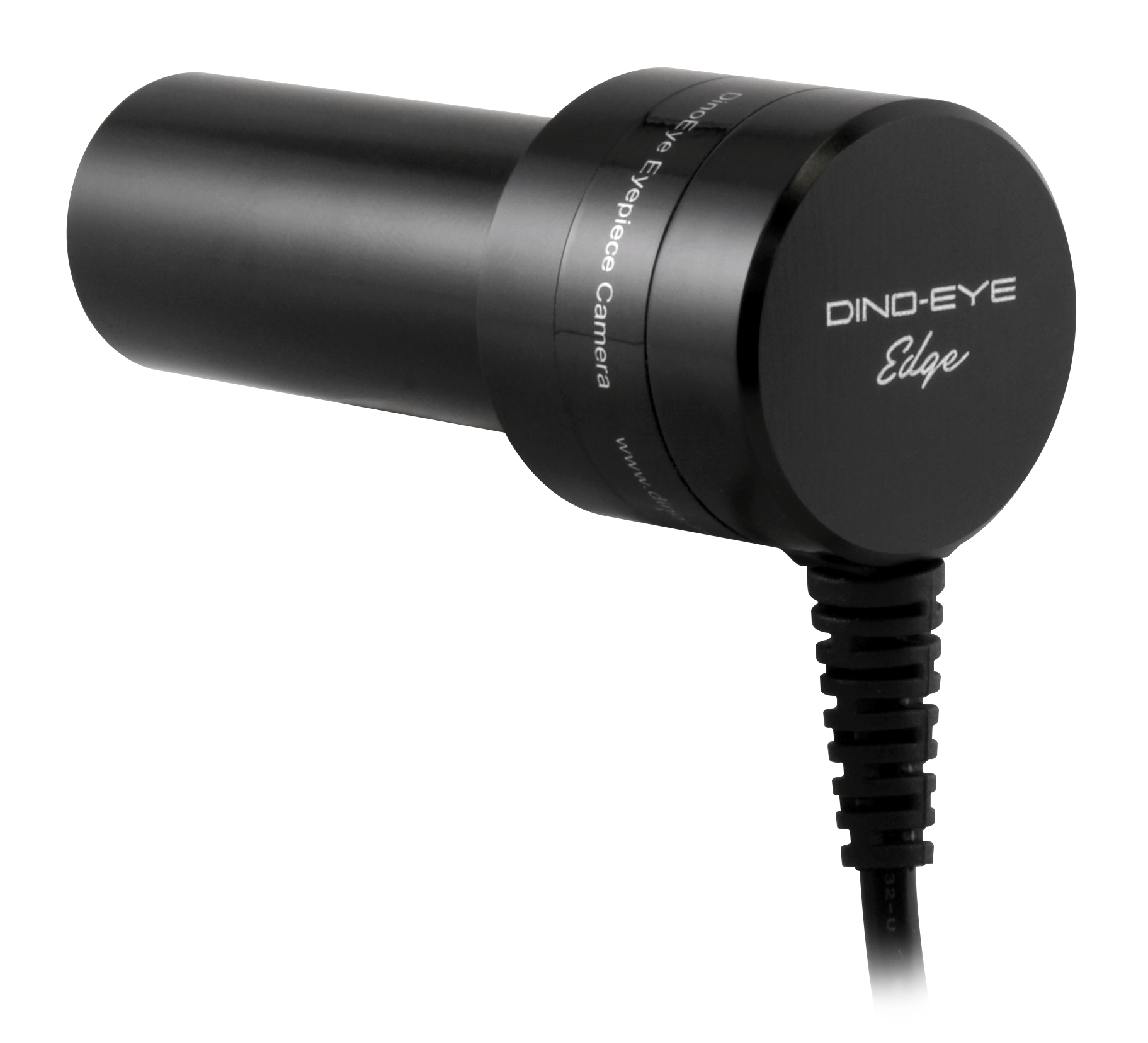

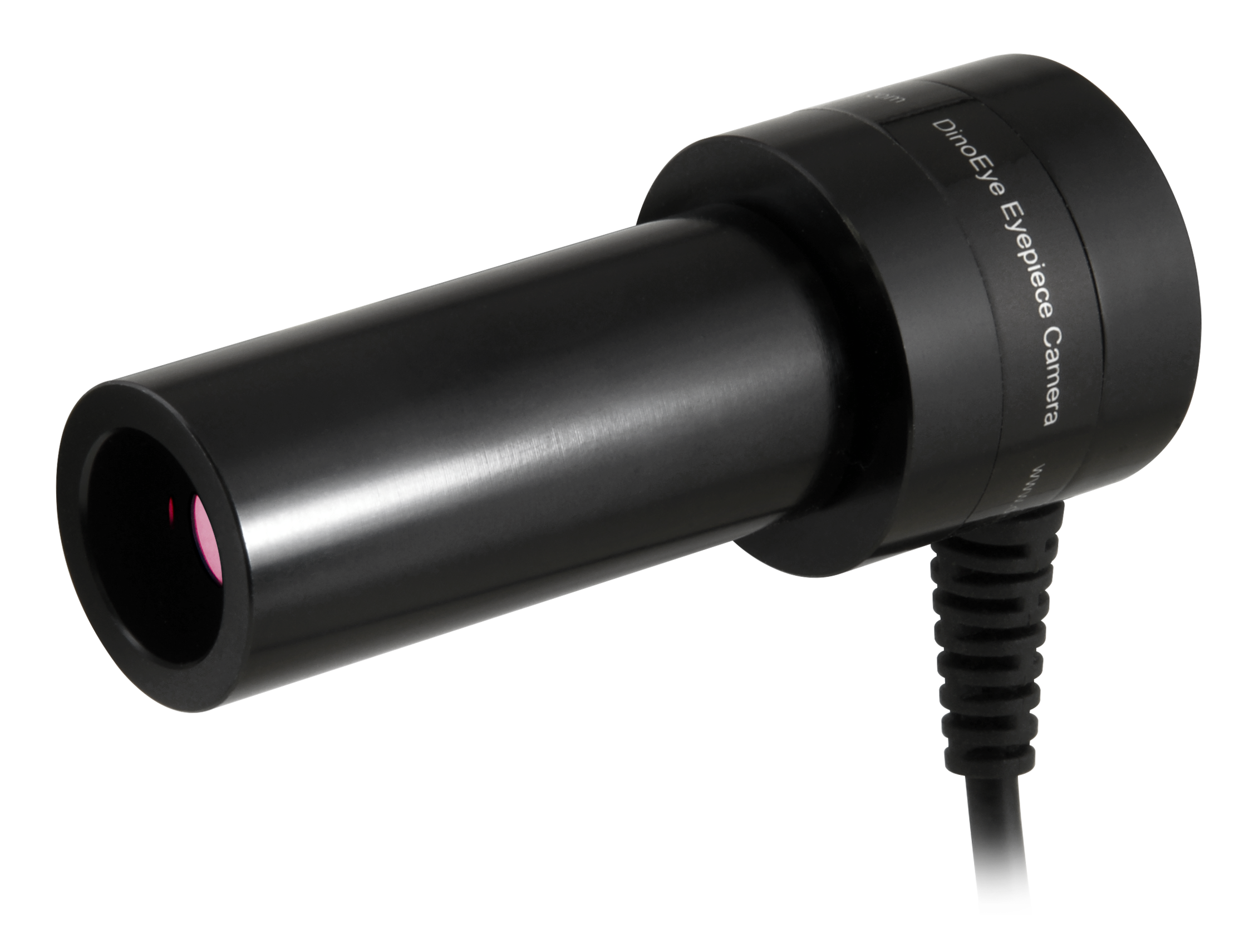

The all new DinoEye Edge 5MP AM7025X eyepiece camera provides superior image quality and true colour reproduction. With 23mm, 30.5mm, 30mm and c-mount fittings the AM7025X offers a single solution 5M pixel USB eyepiece camera for the majority of traditional microscopes.


USB-2Measurement5-megapixel

CmountOcular 23 etc

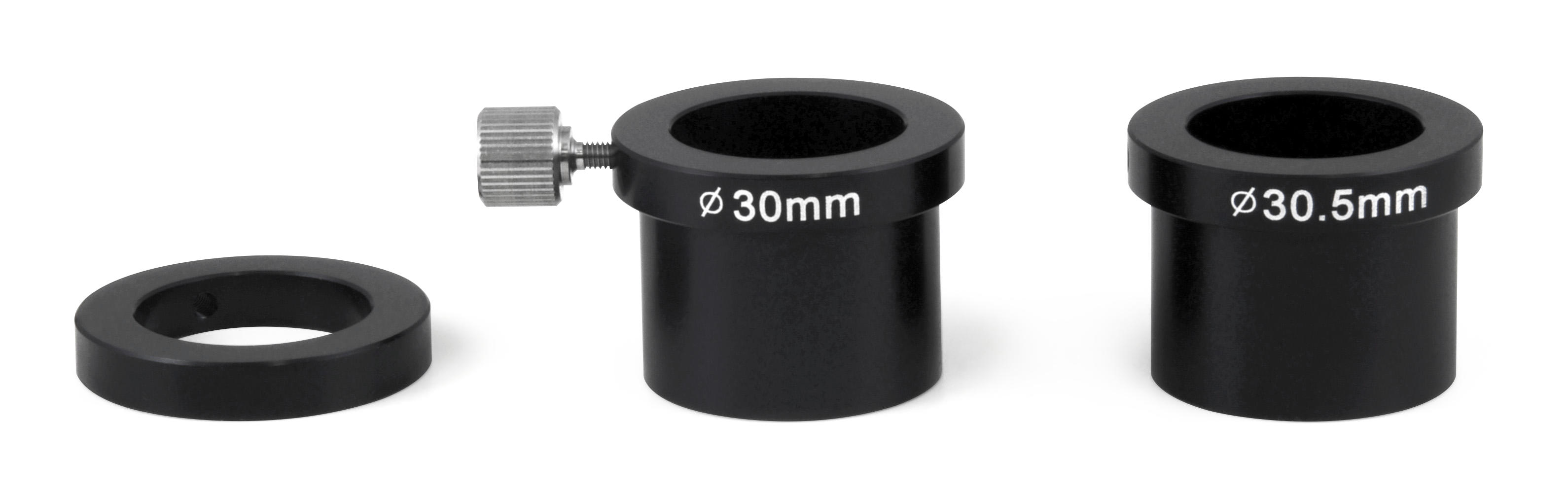

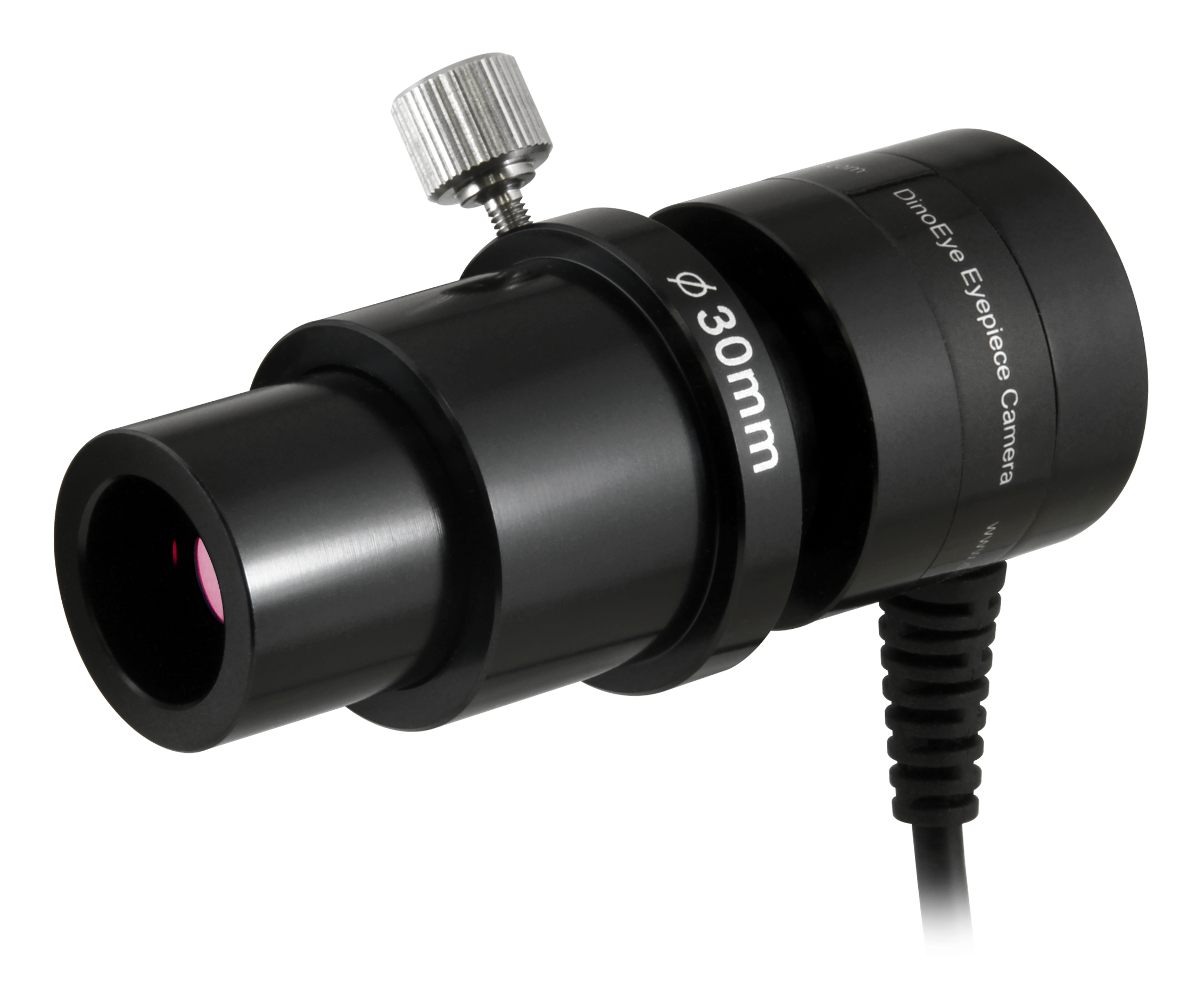

The large field of view allows you to capture more details with one image. You can replace one of the eyepieces of the microscope by the Dino-Eye camera which has a diameter of 23mm, or you can use one of the provided adapters of 30mm or 30,5mm to make it fit.

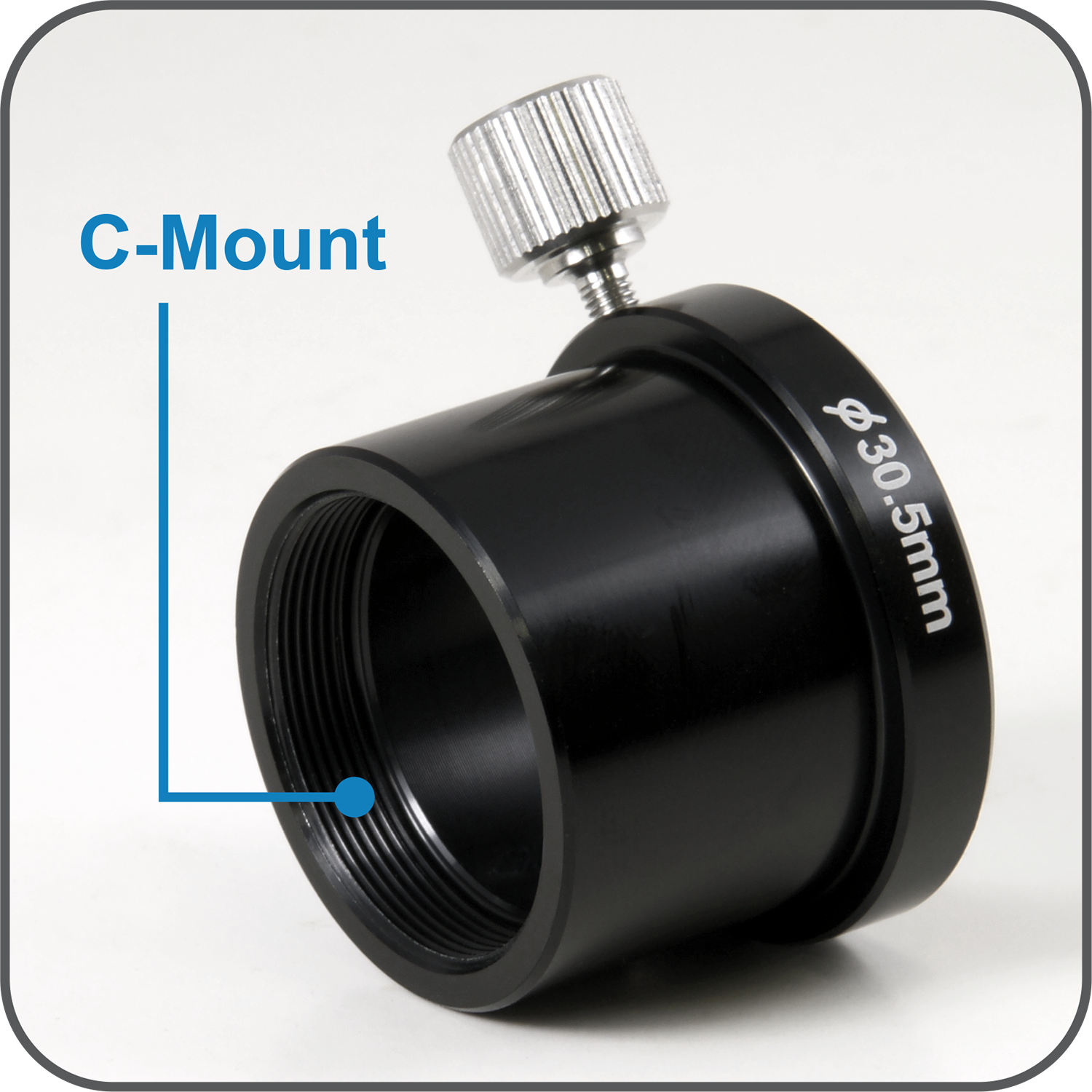

Additionally you can use the c-mount thread that is included with the 30,5mm adapter to be able to connect the DinoEye to the c-mount adapter (not included) on the Trinocular tube of the microscope. The AM7025X eyepiece camera will therefore fit to almost all microscope brands and models available. The AM7025X comes with DinoCapture software for Windows and DinoXcope software for MAC, which includes measurement, annotation, video and time-lapse functions.



Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 20x (Built-in)
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: Not applicable
  • LED on/off switchable: No
  • Material: Full aluminium alloy body
  • Exchangeable caps: Yes
  • Microtouch: No
  • Scroll lock: Yes
  • Output: Picture, Video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • JPEG Codec: None
  • Special: None
