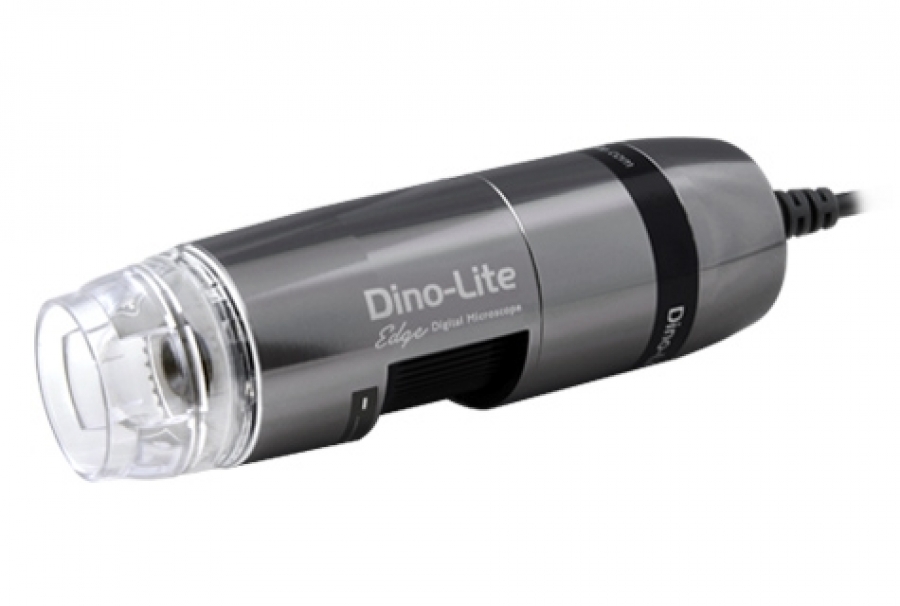

AM7515MT4A

Remarkably compacted with a built-in coaxial light, the 5MP Edge AM7515MT4A delivers exceptional brightfield image at 415~470x magnifications. Through the use of Flexible LEDs Control (FLC), the AM7515MT4A is capable of switching between or mixing brightfield and darkfield for more details. Taking the advantages of Automatic Magnification Readings (AMR), the AM7515MT4A may optimize the measurement with efficiency and accuracy for catering the needs of most measuring tasks.

Brightfield/Darkfield
Without the need of other accessories, the brightfield and darkfield illumination can be provided separately or coordinated with each other to explore for more details.

High optical resolution with up to 400X magnifications
With superior optics, this Edge model is capable of revealing some of the finest details within a range of 415-470X magnifications.

5.0 Megapixels
Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 2592x1944.

Automatic Magnification Reading (AMR)
Without the hassle to stop and check the magnification for doing a measurement, the AMR detects the magnification rate automatically through the software, making the measurement be a more efficient, accurate, and pleasant process.

Flexible-LED-Control (FLC)
Tasking with software, the FLC maximizes illumination flexibility by offering independent on/off control to the four LED quadrants in addition to the 6-levels intensity adjustment capability.

Scroll Lock
The scroll lock ensures the focus knob staying at the desired focus or magnification position without worry of unintentional movement.

Robust Housing
The metal housing made of aluminum alloy offers compelling advantages of protection and endurance.

Interchangeable Caps
The interchangeable caps provide adaptability to numerous applications with alternative lighting or object interface, such as but not limited to diffused-light, ring-light, and coaxial-light etc.

Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 400x ~ 470x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:
    M WD FOV (x) FOV (y) DOF
    415 6.0 0.951 0.697 0.03
    420 7.3 0.926 0.680
    430 8.0 0.905 0.664
    440 8.8 0.884 0.648
    450 10.0 0.867 0.636
    460 11.3 0.847 0.621
    470 11.8 0.828 0.608 0.045


    M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field
