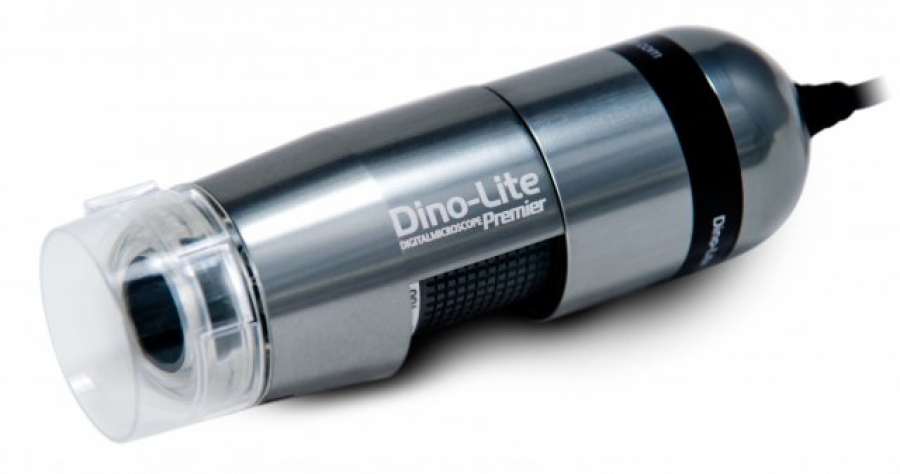

AD7013MT

5M pixel (2592x1944) USB Microscope with exchangable end caps and 10x-70x and 200x optics.

This standard working distance model offers all the features of the AM7013MT with the additional benefit of exchangeable end caps; 5M pixel image sensor (up to 2592x1944), 8 x white LED illumination with software on/off, MicroTouch snapshot function and advanced software measurement with calibration. Supplied with both an open and closed cap, other specialist caps are available as accessories.

The Dino-Lite AD series feature exchangeable end caps allowing special function end caps to be fitted to the microscope. Removal of the end cap provides additional working distance and also allows a wider range of magnifications to be utilised when compared to the standard AM series models.

The Dino-Lite Premier 5M pixel range provides 5M pixel imaging (up to 2592x1944) and introduces the highest resolution Dino-Lite to date. The high performance image sensor, excellent optics, low noise electronic design and robust metal housing ensure industry leading quality and performance.

All models within the AD7013 range benefit from the innovative 2x magnification mode (available only when operating at 1.3M pixel resolution). This mode provides an additional 2x magnification factor and effectively doubles the magnification range of the device adding further flexibility.

Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 10x ~ 70x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: MJPEG Codec may be required for 5M pixel operation (not included)
  • Special: Exchangeable caps
  • Field of View:
    M WD FOV (x) FOV (y)
    20 58.1 19.8 14.9
    30 31.2 13.2 9.9
    40 18.4 9.9 7.4
    50 11.4 7.9 5.9
    60 7.1 6.6 5
    70 4.5 5.7 4.2
    80 2.9 5 3.7
    90 2 4.4 3.3
    100 1.5 4 3
    110 1.4 3.6 2.7
    120 1.5 3.3 2.5
    130 1.8 3 2.3
    140 2.3 2.8 2.1
    150 3 2.6 2
    160 3.7 2.5 1.9
    170 4.5 2.3 1.7
    180 5.4 2.2 1.7
    190 6.3 2.1 1.6
    200 7.3 2 1.5
    210 8.3 1.9 1.4
    220 9.4 1.8 1.4
    230 10.5 1.7 1.3

    M = magnification rate, WD = working distance (with cap removed), FOV = field of view, Unit = mm
