AM5216ZTL

AM5216ZTL

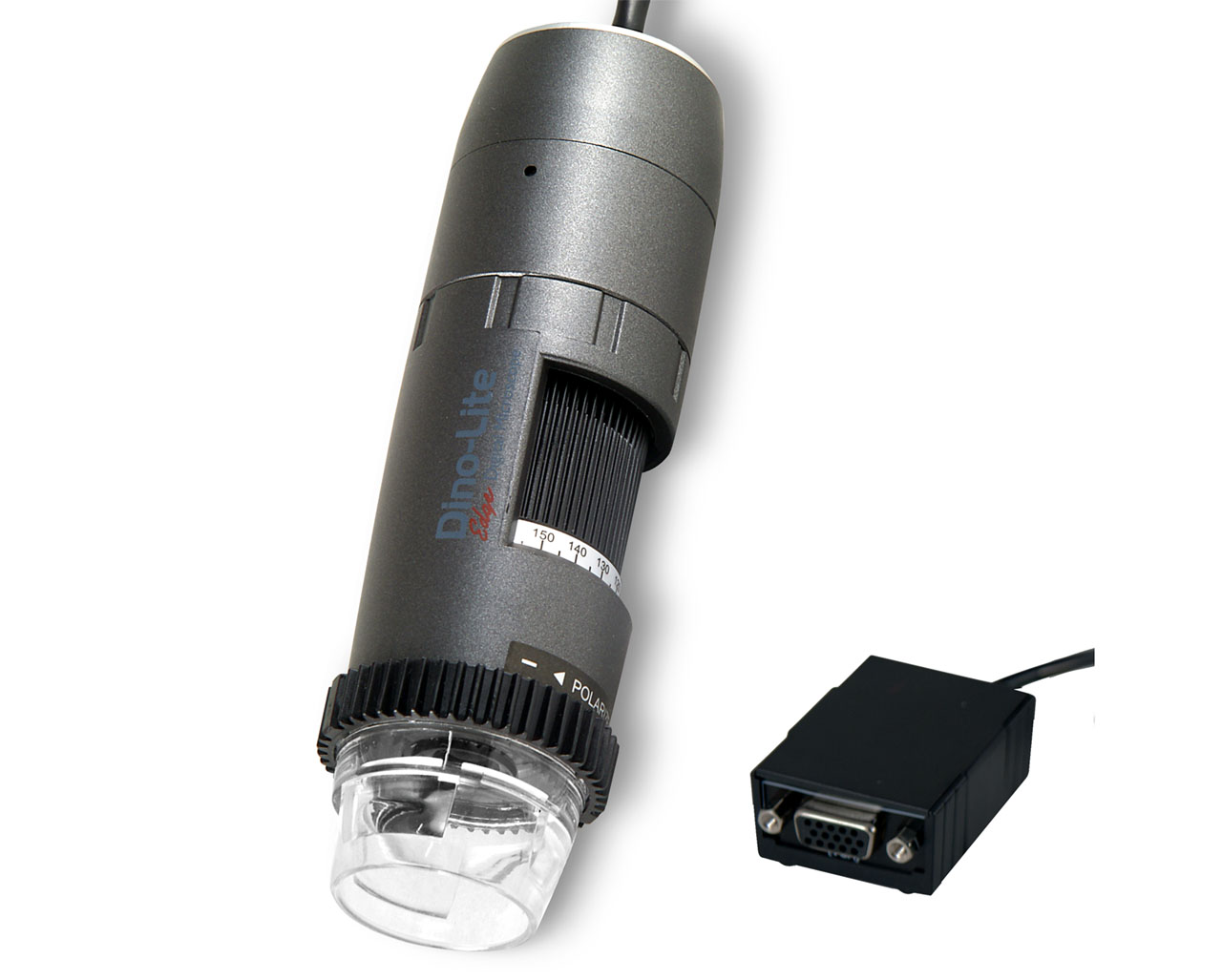

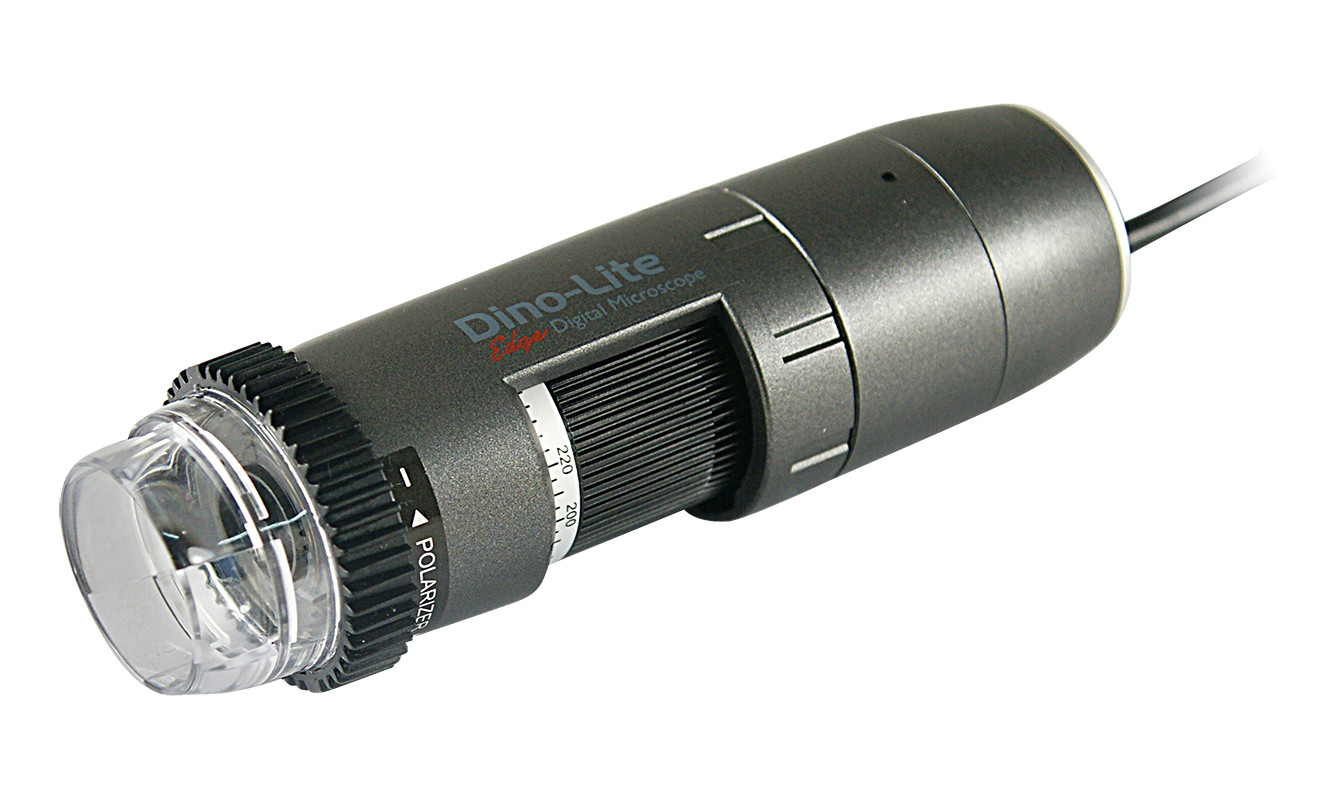

The Dino-Lite AM5216ZTL connects directly to a VGA screen via a VGA (D-SUB) connector. It offers a high frame rate of up to 60fps at 1280x720 resolution, resulting in crystal clear images.

VGA-connHigh-speedMag 10 140

mag-lockres 12808-leds

PolariserILong-W-distance

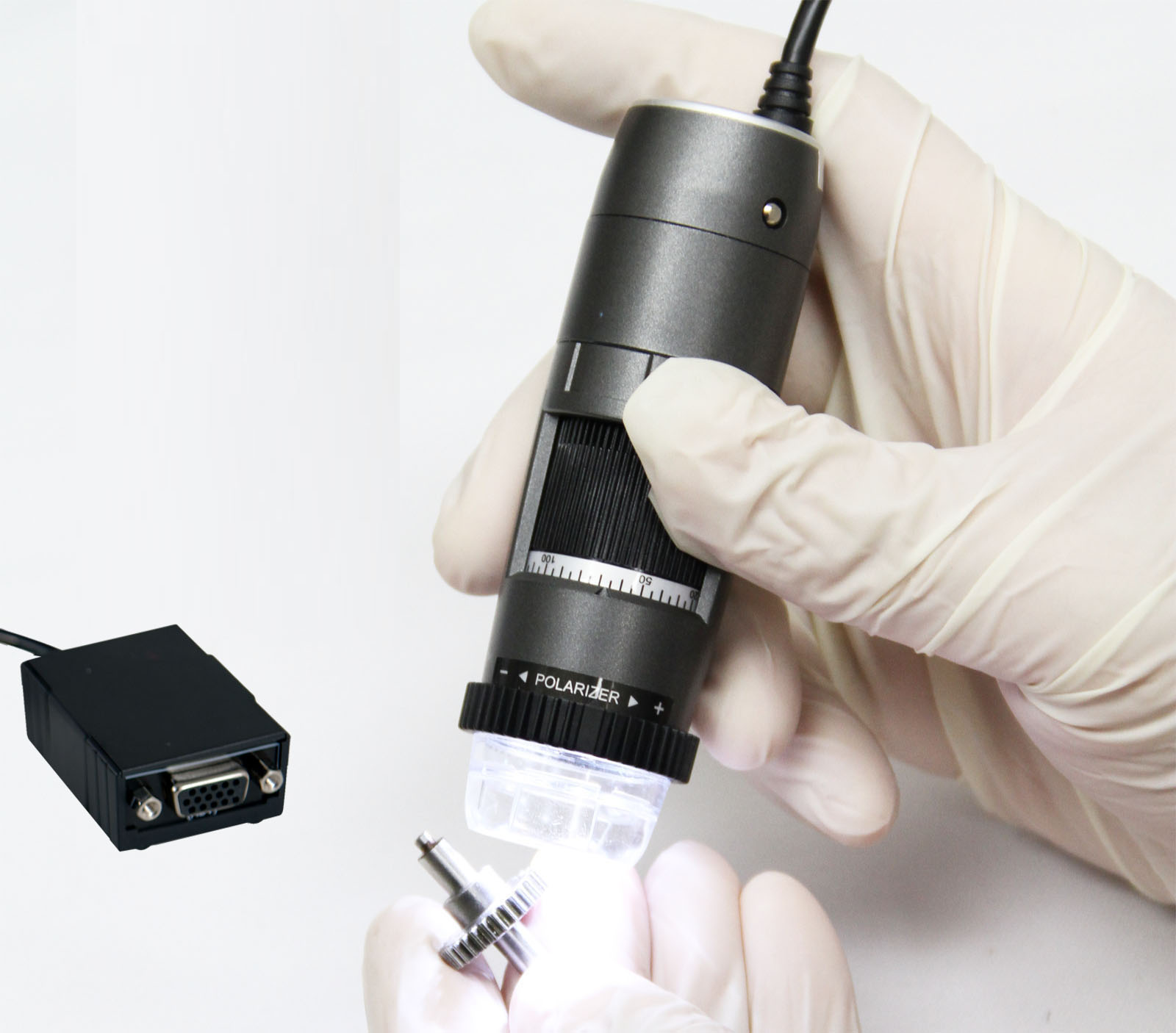

Together with the long working distance of up to 15 centimeters the AM5216ZTL is the ideal choice in situations, where real time images are vital, such as working on PCB's or other miniature objects. By tapping the Microtouch sensor on the microscope, the image can be frozen for inspection of important details and by pressing the Microtouch sensor for 2 seconds the LEDs can be switched on and off. The built-in adjustable polarizer reduces glare and reflection on shiny objects, such as metal surfaces, electronics, plastics etc. (The AM5216ZTL replaces model AM5116ZTL.)



» Also available: AM5216TL without polarizer



Additional Info

  • Resolution: HD 720p
  • Magnification: 20-220x
  • Working Distance: Long Working Distance
  • Interface: VGA (D-SUB) Connector
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Video
  • Video Frame Rate: Up to 60 frames-per-second
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Not applicable
  • Software: None
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance Field of View(x) Field of View(y) Depth of Field
    Listed values may differ slightly       Unit = mm
    10 234.5 39.0 31.2 12
    20 112.5 19.5 15.6 4.5
    30 72.5 13.0 10.4 3.1
    40 54.5 9.8 7.8 1.8
    50 43.5 7.8 6.2 1.2
    60 37.5 6.5 5.2 0.9
    70 33.7 5.6 4.5 0.6
    80 31.3 4.9 3.9 0.5
    90 29.9 4.3 3.5 0.37
    100 29.2 3.9 3.1 0.28
    110 29.1 3.5 2.8 0.22
    120 29.3 3.3 2.6 0.17
    130 29.8 3.0 2.4 0.12
    140 30.5 2.8 2.2 0.09
  • Package contents: Microscope, Carry pouch, Power adapter, Front cover box, User manual
