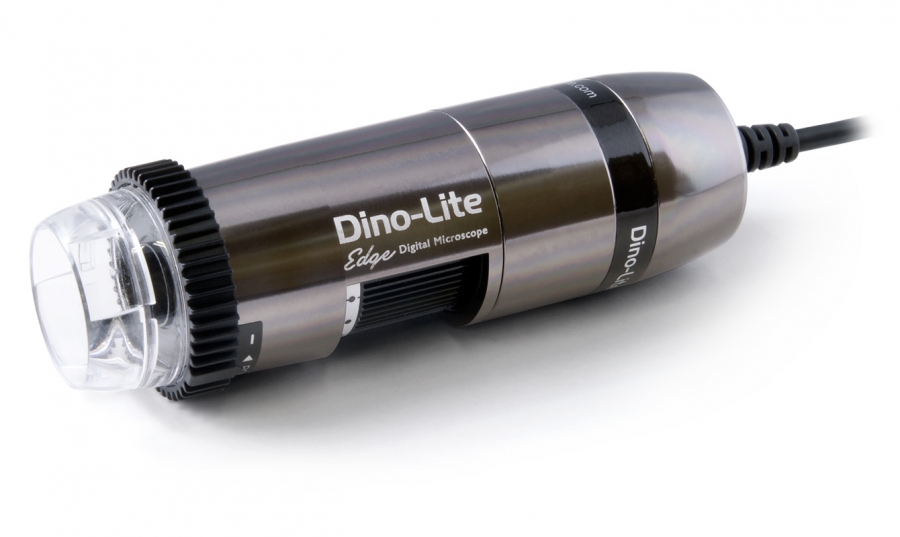

AM7915MZTL - Edge

The AM7915MZTL is part of the Long Working Distance (LWD) range and with its Long Working Distance and magnification range from 10 - 140x, it is suitable for a wide range of applications where extra distance to the object or a larger field of view is required.


USBMag 10 1405 megapixel

EDOFEDRAMR

PolariserFLCexch-cap


With the Extended Dynamic Range (EDR) feature, the details of darker or brighter areas within the object can be revealed by stacking images at different exposure levels. The Extended Depth of Field (EDOF) feature automatically stacks images at different focus level to improve the depth of field on rough or uneven surfaces. The AMR function is of particular importance when the measurement functions are frequently used. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc.

The main features of the AM7915MZTL are:
• 5 Megapixel Edge sensor
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• 10-140x Magnification & Long working distance
• Automatic Magnification Reading (AMR)
• Adjustable polarizer
• Flexible LED Control (FLC)
• And more...

*EDOF/EDR only functions under Windows OS

Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 10-140x
  • Working Distance: Long Working Distance
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance *   Field of View(x)   Field of View(y)   Depth of Field
    Listed values may differ slightly
    * Without front cap     Unit = mm
    10 234.5 39.0 29.2 12.0
    20 112.5 19.5 14.6 4.5
    30 72.5 13.0 9.7 3.1
    40 54.5 9.8 7.3 1.8
    50 43.5 7.8 5.8 1.2
    60 37.5 6.5 4.8 0.9
    70 33.7 5.6 4.2 0.6
    80 31.3 4.9 3.6 0.5
    90 29.9 4.3 3.2 0.37
    100 29.2 3.9 2.9 0.28
    110 29.1 3.5 2.6 0.22
    120 29.3 3.3 2.4 0.17
    130 29.8 3.0 2.2 0.12
    140 30.5 2.8 2.1 0.09
  • Package contents:
    Microscope, Carry pouch, Software CD, User manual, Quick guide, Calibration target, Front cover box
