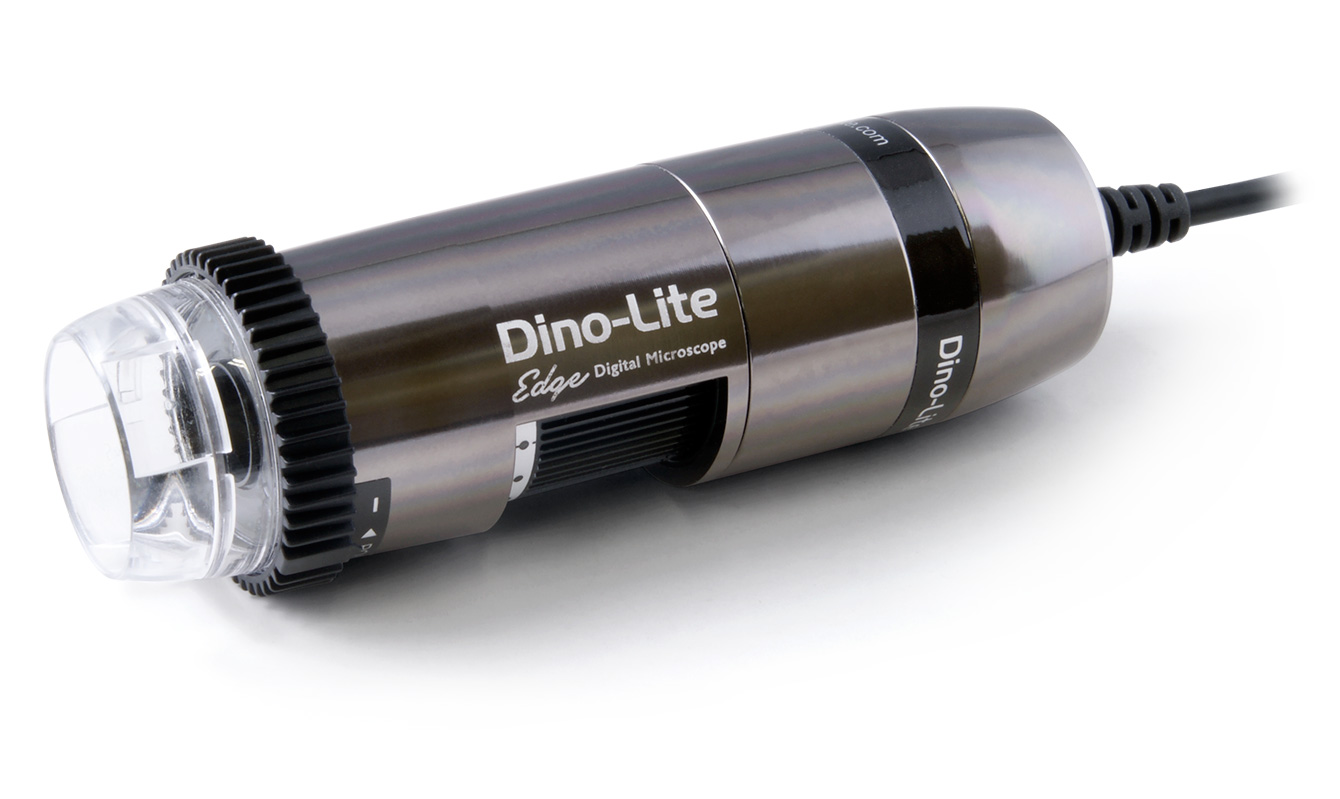

AM7915MZT - Edge

With the use of the latest, cutting-edge optics, a brand new 5 megapixel sensor and several special features, the Dino-Lite AM7915MZT is a marvel of technology and the best choice for the high-demanding professional. The Dino-Lite AM7915MZT offers superb image quality and color reproduction in a robust, compact and appealing housing.


USBMag 10 2205 megapixel

EDOFEDRAMR

PolariserFLCexch-cap


With the Extended Dynamic Range (EDR) feature, the details of darker or brighter areas within the object can be revealed by stacking images at different exposure levels. The Extended Depth of Field (EDOF) feature automatically stacks images at different focus level to improve the depth of field on rough or uneven surfaces. With the built-in automatic magnification reading (AMR), measurements can be performed easily and quickly. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc.

The main features of the AM7915MZT are:
• 5 Megapixel Edge sensor
• Extended Depth of Field (EDOF)
• Extended Dynamic Range (EDR)
• Automatic Magnification Reading (AMR)
• Adjustable polarizer
• Flexible LED Control (FLC)
• And more...

*EDOF/EDR only functions under Windows OS

Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 10-220x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance *   Field of View(x)   Field of View(y)   Depth of Field
    Listed values may differ slightly
    * Without front cap     Unit = mm
    10 136.0 37.8 28.3 -
    20 60.2 19.5 14.6 2.5
    30 33.5 13.0 9.7 1.8
    40 20.9 9.8 7.3 1.5
    50 13.9 7.8 5.8 -
    60 9.7 6.5 4.8 -
    70 7.1 5.6 4.2 1.0
    80 5.5 4.9 3.6 -
    90 4.5 4.3 3.2 -
    100 4.1 3.9 2.9 -
    110 4.0 3.6 2.7 -
    120 4.1 3.3 2.4 -
    130 4.5 3.0 2.2 -
    140 5.0 2.8 2.1 -
    150 5.6 2.6 1.9 -
    160 6.3 2.4 1.8 -
    170 7.1 2.3 1.7 -
    180 8.0 2.2 1.6 -
    190 8.9 2.1 1.5 -
    200 9.9 2.0 1.5 -
    210 10.9 1.9 1.4 -
    220 11.9 1.8 1.3 0.1
  • Package contents:
    Microscope, Carry pouch, Software CD, User manual, Quick guide, Calibration target, Front cover box

Media

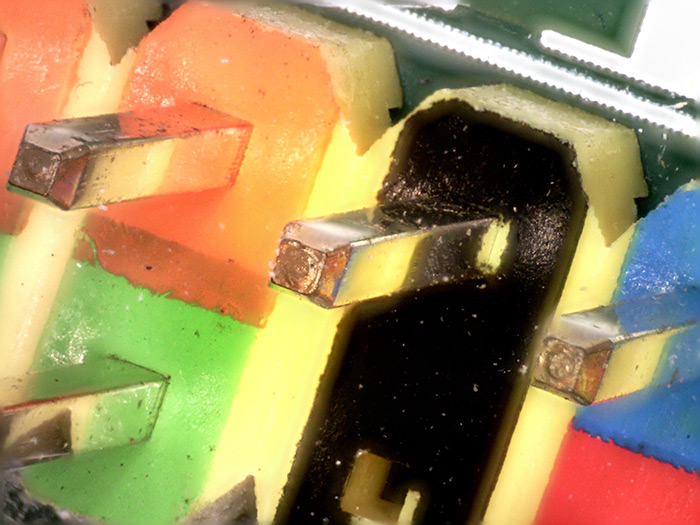

Image Gallery
