AM7115MZT - Edge

AM7115MZT - Edge

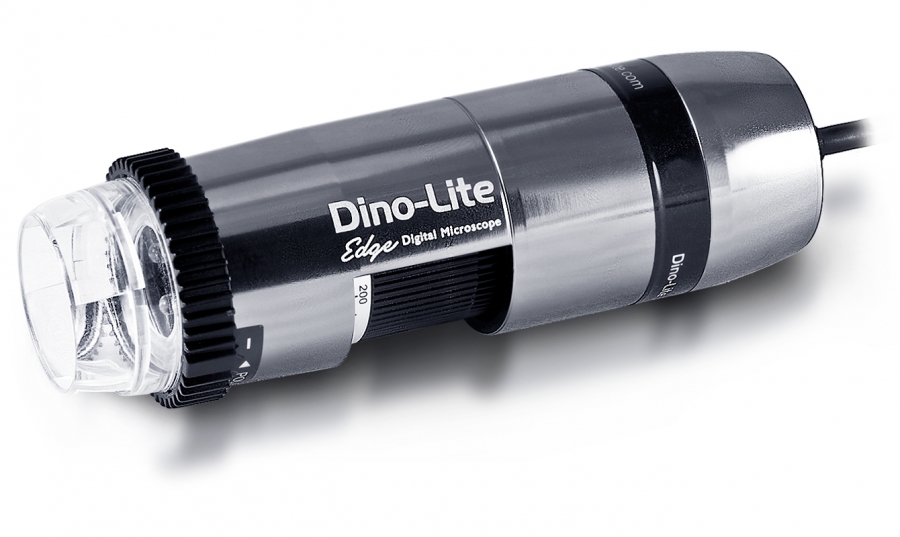

With the use of the latest, cutting-edge optics, a brand new 5 megapixel sensor and several special features such as Flexible LED Control (FLC) and full aluminum body, the Dino-Lite AM7115MZT is a marvel of technology and the best choice for the high-demanding professional. The Dino-Lite AM7115MZT offers superb image quality and color reproduction in a robust, compact and appealing housing.

USBMeasurementMag-20-220

Metal5 megapixel8-leds

PolariserFLCexch-cap

The AM7115MZT is part of the universal range and with its standard working distance and wide magnification range from 20 – 220x, it is suitable for a wide range of applications. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc.

The main features of the AM7115MZT are:
5 Megapixel Edge sensor, 20-220x magnification, integrated polarizer, aluminum housing, Flexible LED Control (FLC), extensive measurement functions, Calibration, exchangeable front caps and more.



Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 20-220x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: IR cut-filter >650 nm
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: MJPEG Codec may be required for 5M pixel operation (not included)
  • Special: None
  • Field of View:



    Magnification Rate Working Distance 1 Working Distance 2* Field of View(x) Field of View(y) Depth of Field
    Listed values may differ slightly
         		  * Without front cap     Unit = mm
    20 52.7 60.2 19.5 15.6 2.5
    30 26.0 33.5 13.0 10.4 1.8
    40 13.4 20.9 9.8 7.8 1.5
    50 6.4 13.9 7.8 6.3 -
    60 2.2 9.7 6.5 5.2 -
    70 - 7.1 5.6 4.5 1.0
    80 - 5.5 4.9 3.9 -
    90 - 4.5 4.3 3.5 -
    100 - 4.1 3.9 3.1 -
    110 - 4.0 3.6 2.8 -
    120 - 4.1 3.3 2.6 -
    130 - 4.5 3.0 2.4 -
    140 - 5.0 2.8 2.2 -
    150 - 5.6 2.6 2.1 -
    160 - 6.3 2.4 2.0 -
    170 - 7.1 2.3 1.8 -
    180 - 8.0 2.2 1.7 -
    190 - 8.9 2.1 1.6 -
    200 - 9.9 2.0 1.6 -
    210 - 10.9 1.9 1.5 -
    220 - 11.9 1.8 1.4 0.1
  • Package contents: Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
