AD7013MTL

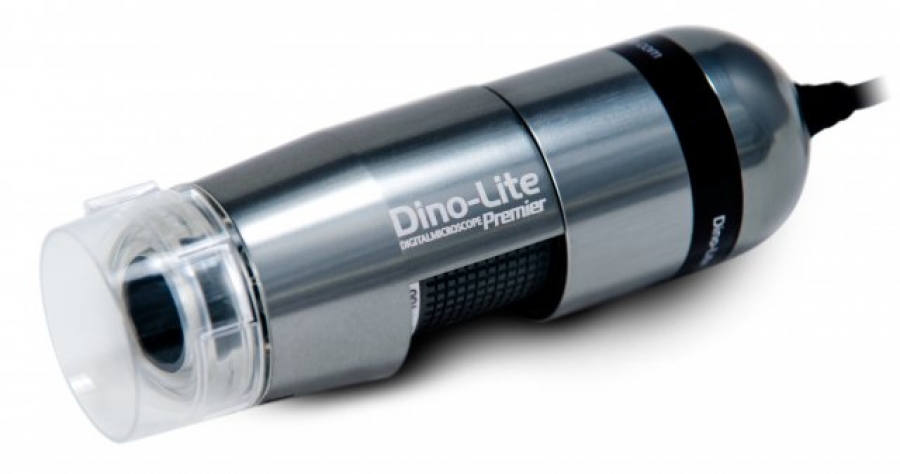

5M pixel (2592x1944) USB Microscope with exchangeable end caps and long working distance 20x-90x optics.

This long working distance model is the 5M pixel version of the Dino-Lite AD413TL and offers all the features you would expect from a professional grade Dino-Lite; 5M pixel image sensor (up to 2592x1944), 8 x white LED illumination with software on/off, MicroTouch snapshot function and advanced software measurement with calibration. The long working distance optics provide from 5cm to 15cm of working distance making this model ideal for applications where extended working distance is required such as repair, rework and assembly tasks. Supplied with one open and one closed end cap as standard, others available as accessories.

The Dino-Lite AD series long working distance models (AD...TL) feature exchangeable end caps allowing special function end caps to be fitted to the microscope. These models are able to take advantage of the FC-L-MA1 mirror angle cap which provides a 45 degree mirror for inspecting hard to access locations. The FC-L-TB1 tube extension cap is another AD series cap specific to the long working distance models and aids the inspection of small voids.

The Dino-Lite Premier 5M pixel range provides 5M pixel imaging (up to 2592x1944) and introduces the highest resolution Dino-Lite to date. The high performance image sensor, excellent optics, low noise electronic design and robust metal housing ensure industry leading quality and performance.

All models within the AD7013 range benefit from the innovative 2x magnification mode (available only when operating at 1.3M pixel resolution). This mode provides an additional 2x magnification factor and effectively doubles the magnification range of the device adding further flexibility.

Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 20x ~ 90x
  • Working Distance: Long Working Distance
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: MJPEG Codec may be required for 5M pixel operation (not included)
  • Special: None
  • Field of View:
    M WD FOV (x) FOV (y)
    20 160.5 19.8 14.9
    30 110.4 13.2 9.9
    40 86.7 9.9 7.4
    50 73.6 7.9 5.9
    60 65.7 6.6 5
    70 60.8 5.7 4.2
    80 57.8 5 3.7
    90 56.1 4.4 3.3

    M = magnification rate, WD = working distance (with cap removed), FOV = field of view, Unit = mm
