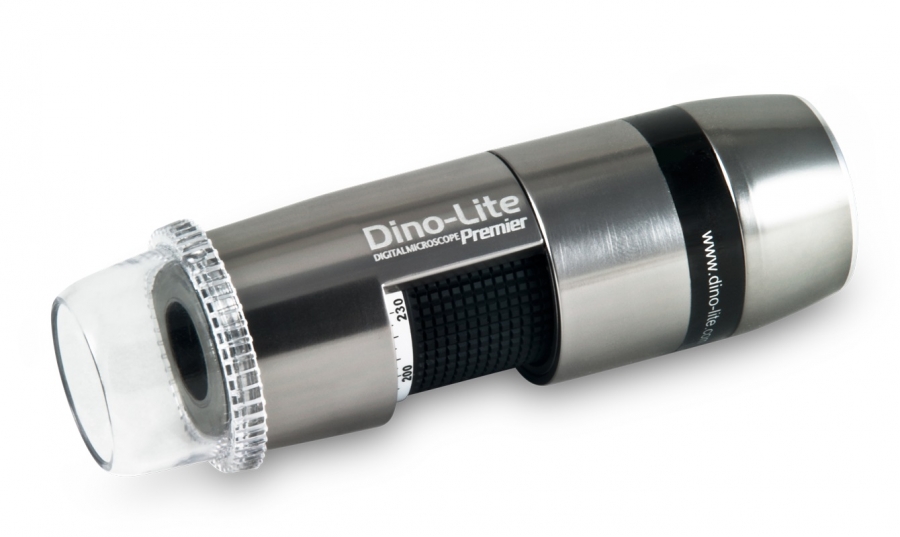

AM5018MZT

The Dino-Lite AM5018MZT can be connected directly to a HDTV or a LCD monitor through a direct digital DVI interface. It offers sharp and vibrant HD 720p resolution to display even the smallest details.


DVIHigh-speedMag-10-70-200

HD-720-vs28-ledsMetal

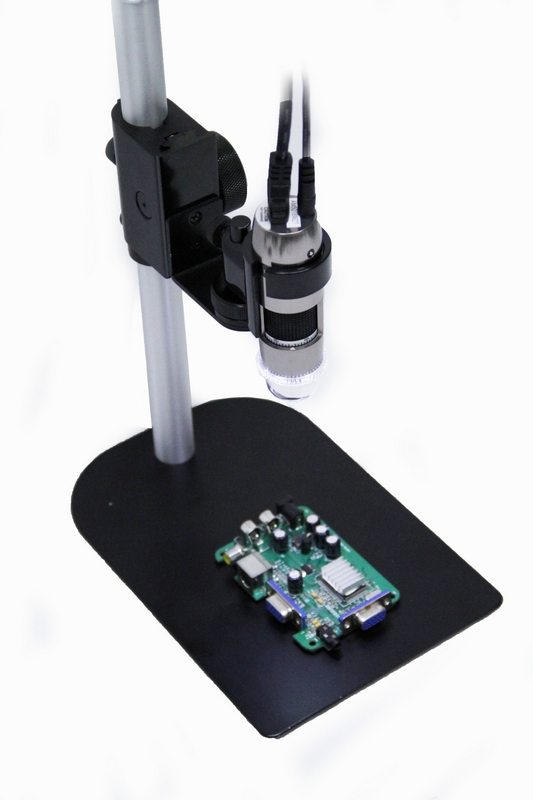

PolariserIStand-W-distance

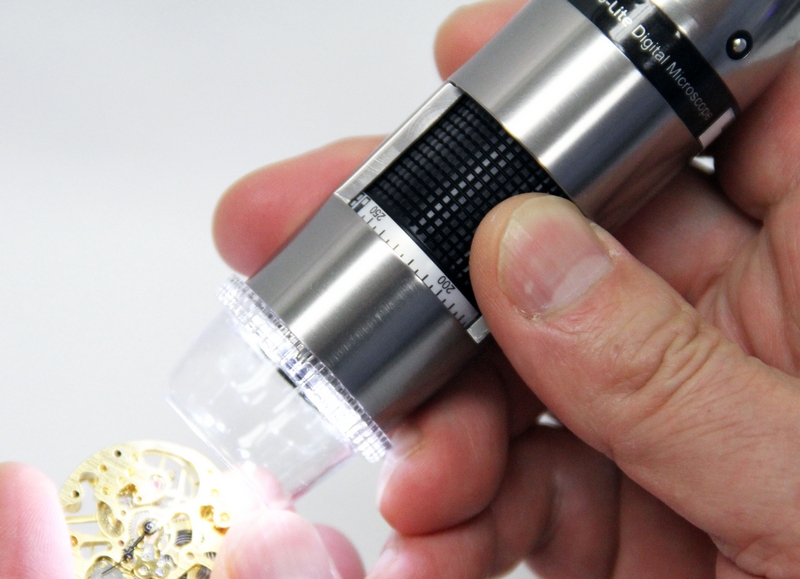

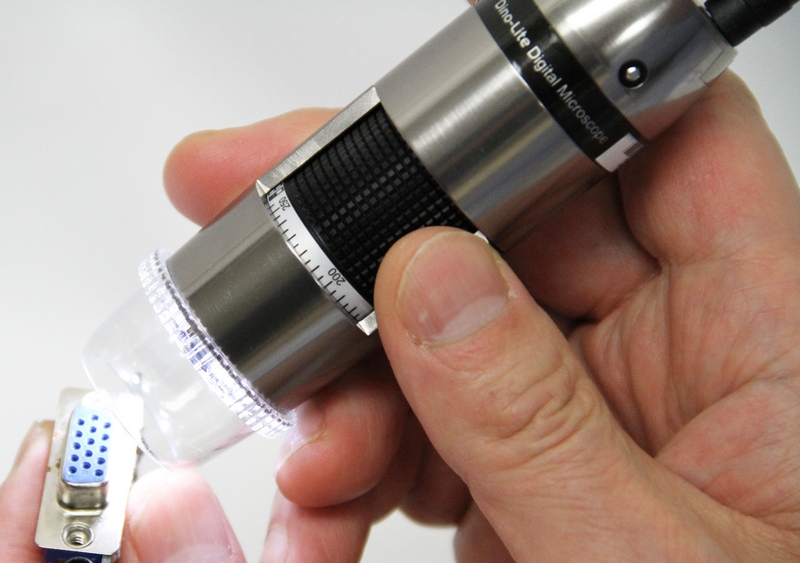

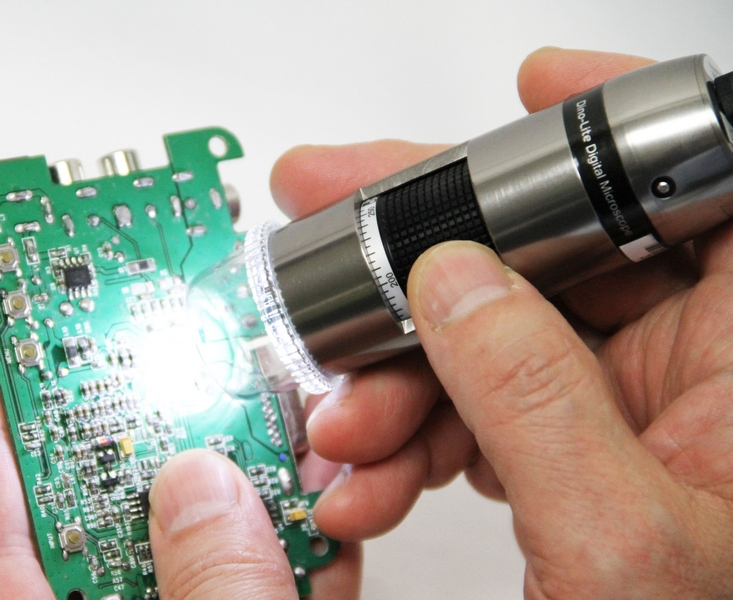

The AM5018MZT is the ideal choice in situations, where real time images are vital, such as working on PCB's or other miniature objects. By tapping the Microtouch sensor on the microscope, the image can be frozen for inspection of important details and by pressing the Microtouch sensor for 2 seconds the LEDs can be switched on and off. The aluminium housing offers enhanced protection and durability and has the best look and feel. The built-in adjustable polarizer reduces glare and reflection on shiny objects, such as metal surfaces, electronics, plastics etc.



Additional Info

  • Resolution: HD 720p
  • Magnification: 10x ~ 70x, 200x
  • Working Distance: Standard
  • Interface: High Definition (DVI)
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Video Frame Rate: Up to 60 frames-per-second
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: Built-in polarizer
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance Field of View(x) Field of View(y) Depth of Field
    Listed values may differ slightly       Unit = mm
    20 48.7 19.8 14.9 3.6
    30 21.7 13.2 9.9 1.9
    40 9.0 9.9 7.4 -
    50 1.9 7.9 5.9 0.88
    60 -2.3 6.6 5.0 -
    220 -0.1 1.8 1.4 0.20
    230 1.0 1.7 1.3 -
    240 2.1 1.7 1.2 -
