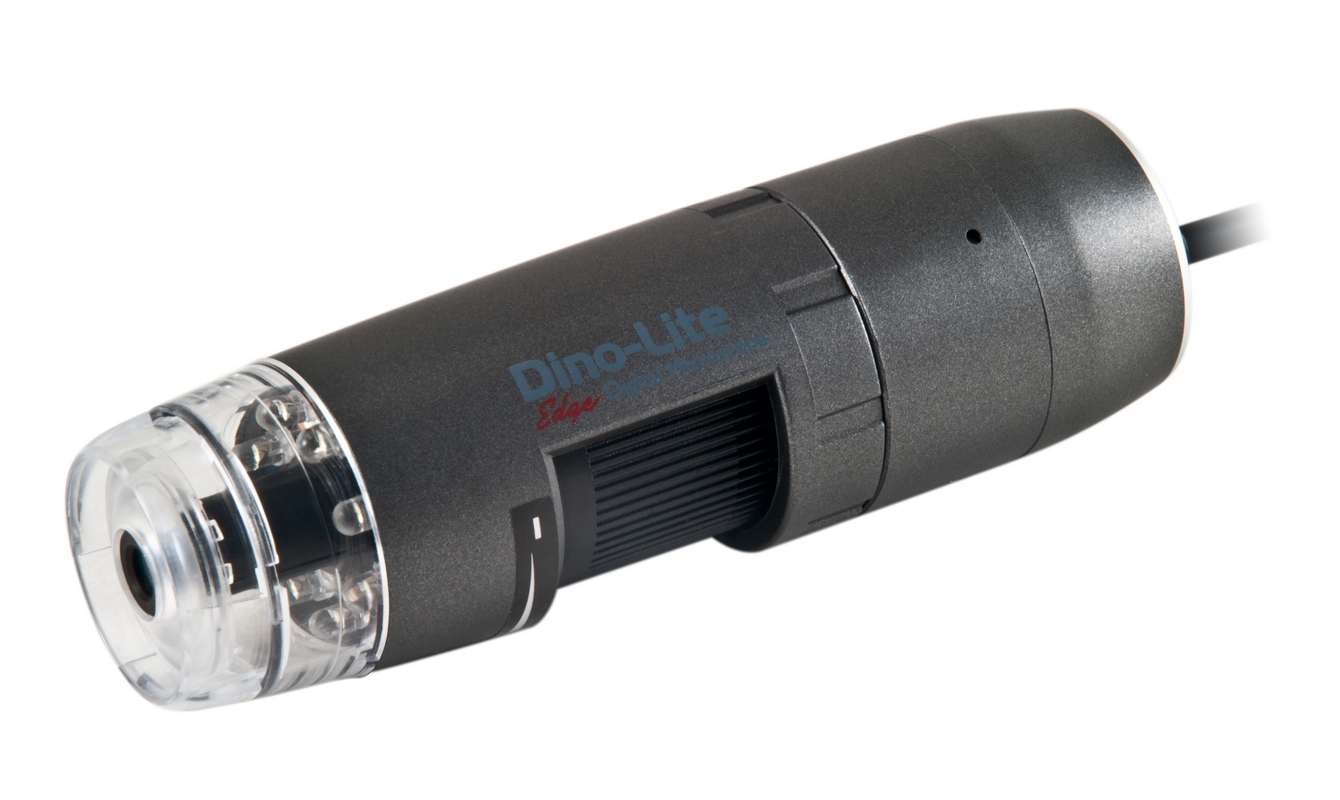

AM4515T5 - Edge

With up to 550x magnification and high-resolution optics, this high magnification Dino-Lite model reveals details as small as 2.5 micrometer (µm). It also features a greater working distance at high magnification making it easier to watch and move very small objects under the microscope.

With up to 550x magnification and high-resolution optics, this high magnification Dino-Lite model reveals details as small as 2.5 micrometer (µm). It also features a greater working distance at high magnification making it easier to watch and move very small objects under the microscope.


USBMeasurementMag-500-550

AMRmag-lockres-1-3

8-ledsexch-cap

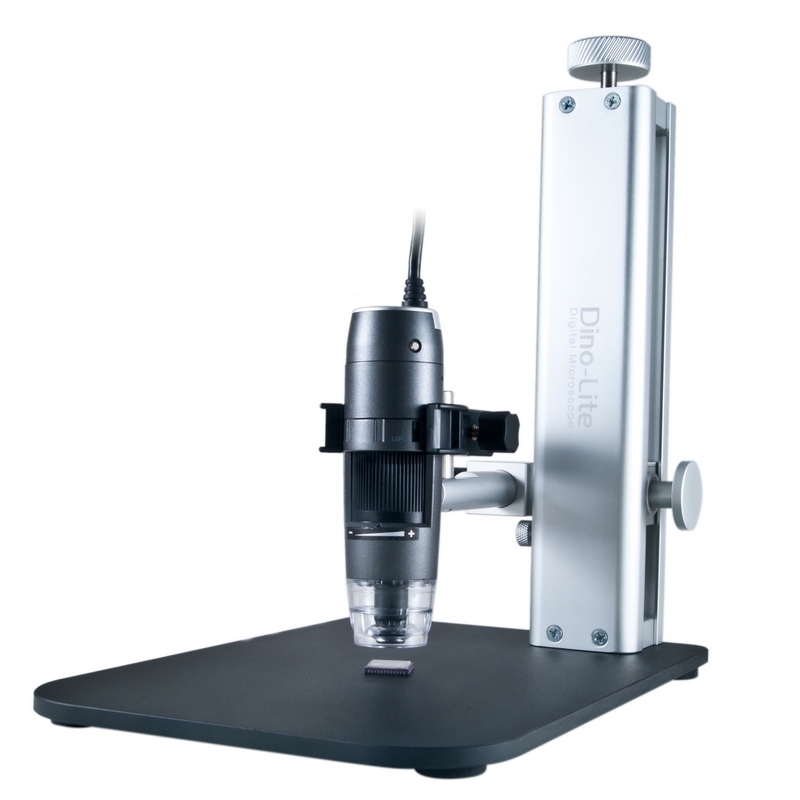

These unique features make the Dino-Lite AM4515T5 a great inspection tool for biomedical and scientific research, material analysis, electronics inspection, or any similar application that require high magnification, versatility and mobility. The Dino-Lite AM4515T5 is bundled with the user-friendly DinoCapture 2.0 software. For this model it includes functions such as automatic magnification reading (AMR), calibration, measurement, capturing & annotating images, and record video. Although the AM4515T5 model can be operated handheld, a high-precision stand is recommendable. The Dino-Lite RK-10A for example is a great add-on, it is a sturdy and stable high-end stand solution constructed of resilient stainless steel and lightweight aluminum and offers a very precise fine-focus adjustment.



Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 500-500x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite

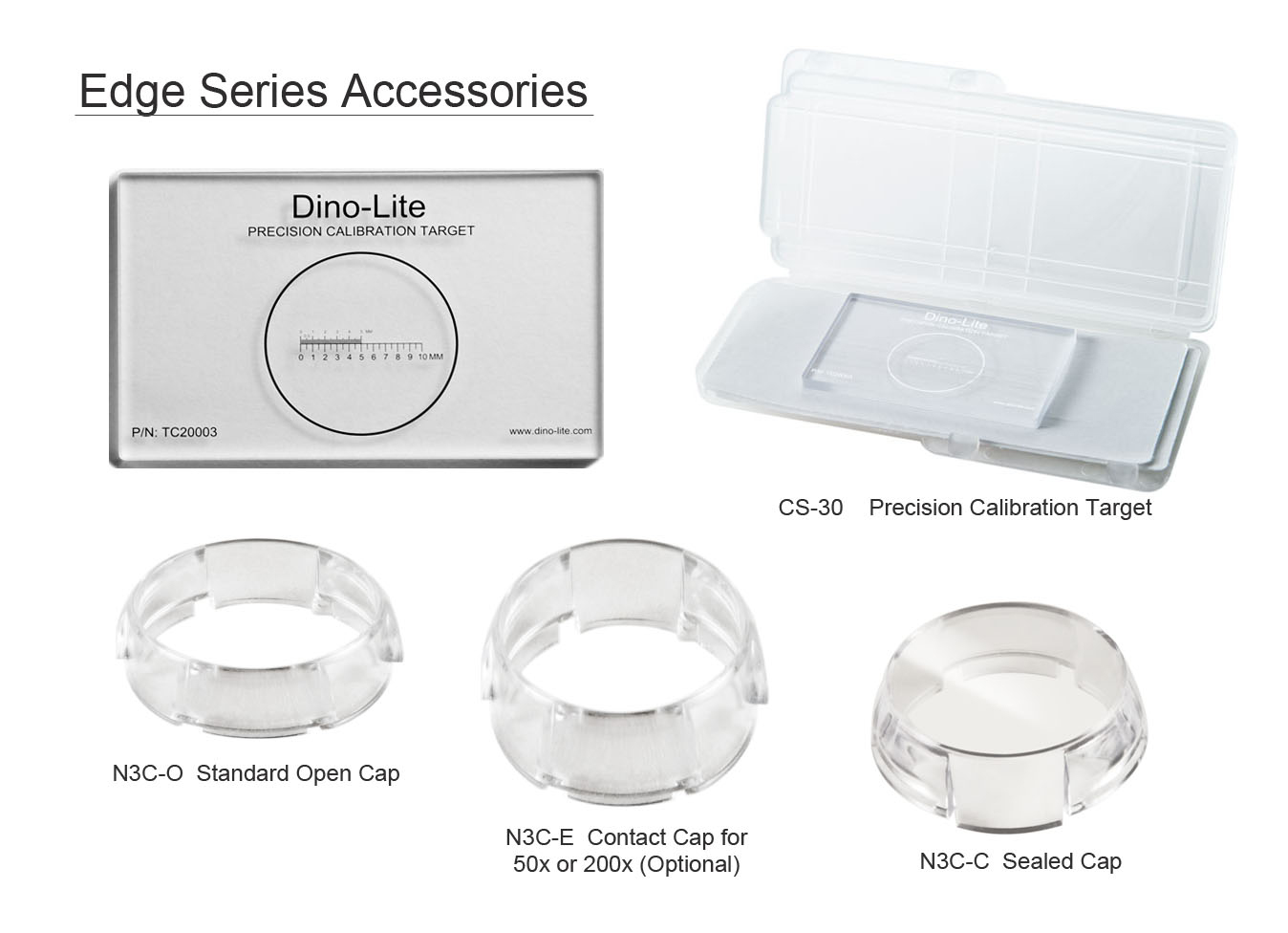

  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: IR cut-filter >650 nm
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance * Field of View(x) Field of View(y) Depth of Field
    Listed values may differ slightly
    * Without front cap     Unit = mm
    500 9.5 0.8 0.6 0.15
    550 9.2 0.7 0.6 0.12
