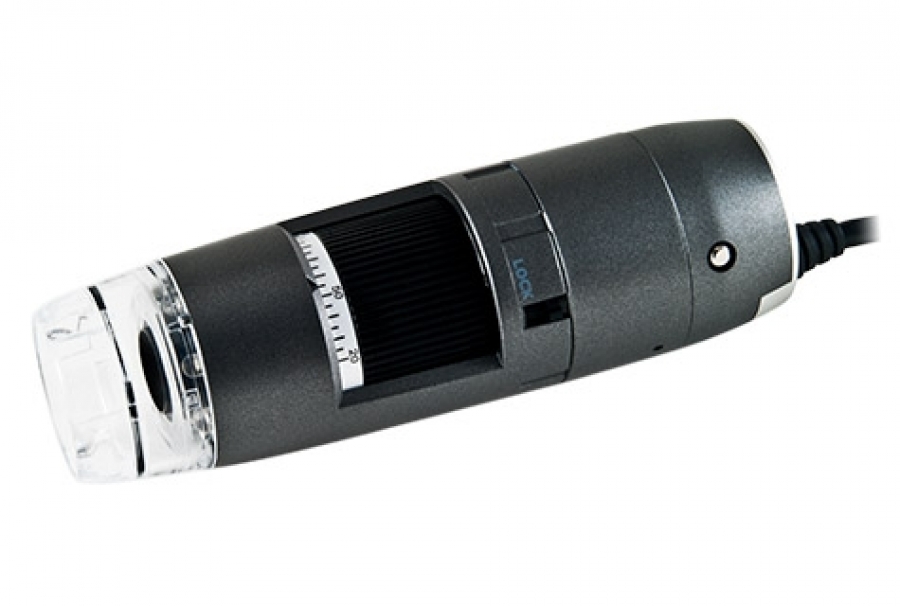

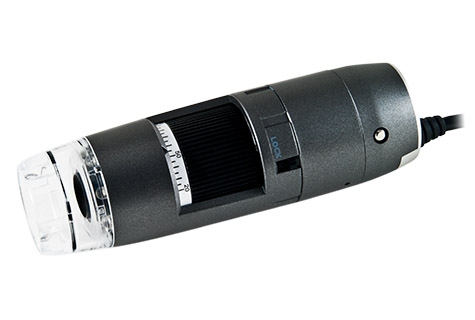

AM4815T - Edge

The Dino-Lite Edge models provide superior image quality and a high level of flexibility due to the adaptable cap design.

  • 1.3 Megapixel resolution
  • Versatility due to exchangeable caps
  • 20-220x Magnification
  • EDR & EDOF

USBMeasurementMag-20-220

EDREDOFres-1-3

8-ledsexch-cap

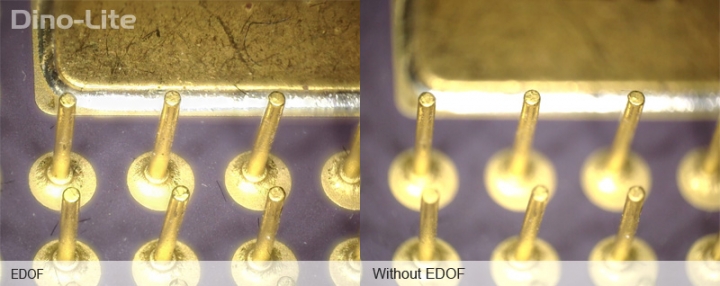

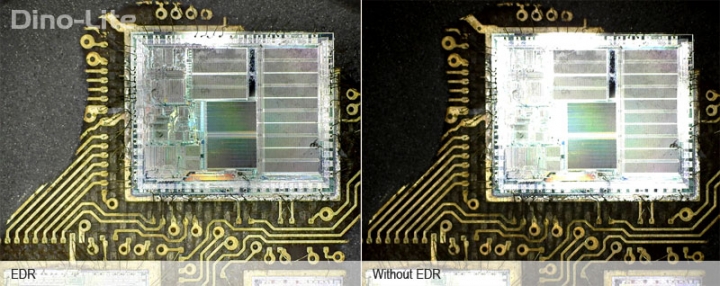

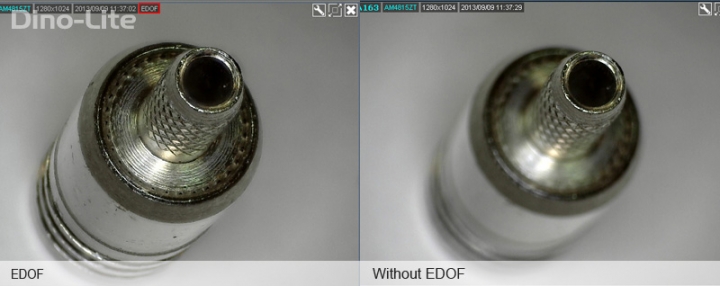

With the Extended Dynamic Range (EDR) feature, the details of darker or brighter areas within the object can be revealed by stacking images at different exposure levels. The Extended Depth of Field (EDOF) feature automatically stacks images at different focus level to improve the depth of field on rough or uneven surfaces. Different caps are supplied with the microscope making the Dino-Lite Edge the perfect choice for any professional application.

*EDOF/EDR only functions under Windows OS

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 20-220x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
