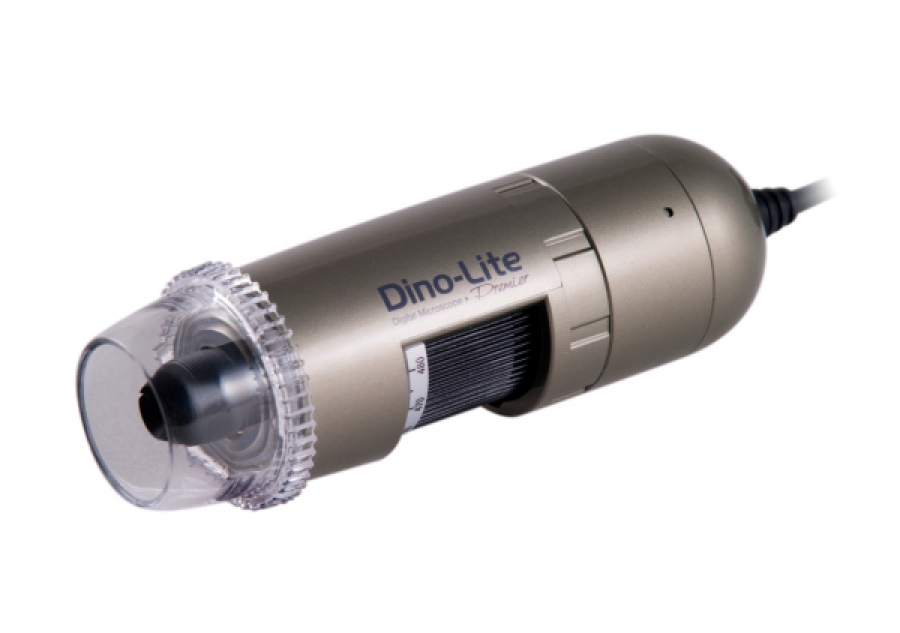

AM4113ZT4

The Dino-Lite Pro AM4113ZT4 provides all the features of the polarizing AM413ZT but uses high magnification 400x optics to allow even more detailed inspection. The advanced polarization feature allows reflection and glare to be controlled and makes this model the ideal choice when examining materials that are reflective such as glass, plastics and metals.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 400x ~ 470x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:
    M WD FOV (x) FOV (y)
    380 0.1 1.03 0.82
    390 1.1 1 0.8
    400 2.0 0.98 0.78
    410 3.0 0.95 0.76
    420 4.0 0.93 0.74
    430 5.0 0.91 0.73
    440 6.0 0.89 0.71
    450 6.9 0.87 0.7
    460 7.9 0.85 0.68

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
