AM413T

AM413T

Now replaced by the AM4113T

The Dino-Lite AM413T represents the most popular model in the Dino-Lite Pro range and offers professional users crystal clear images combined with access to advanced software features. The 1.3M pixel (1280x1024) image sensor provides excellent full screen resolution and the standard working distance 10x-60x & 200x optics offer a wide range of magnifications for general use. Advanced software measurement features with calibration and the MicroTouch snapshot function also feature as standard on the Dino-Lite Pro AM413T.

Additional Info

  • Resolution: 1280x1024pixels(1,3MP)
  • Magnification: 10x ~ 60x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second, 15fps at 1.3M

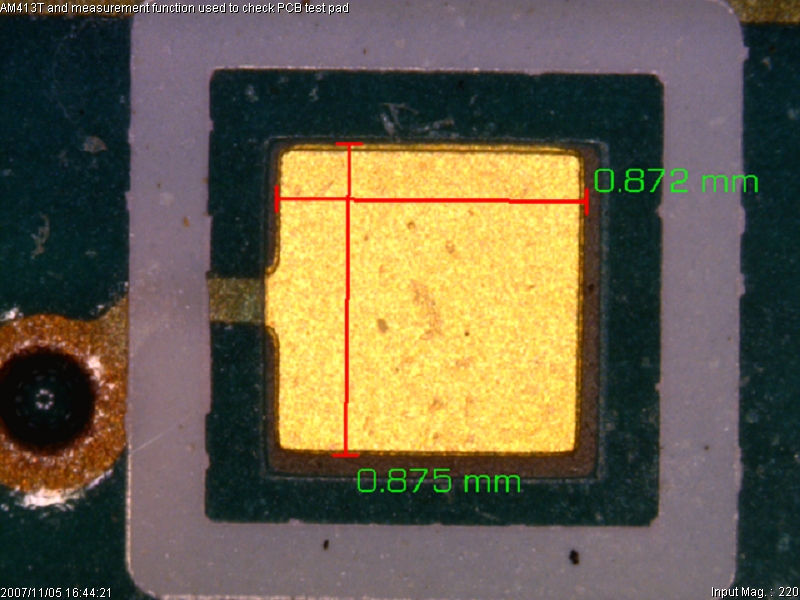

  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: None
  • Compatibility: Windows XP, Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: Now with magnification scroll lock feature, AM413TA.
  • Field of View:
    M WD FOV (x) FOV (y)
    20 51.7 25.1 20.1
    30 24.1 16.8 13.4
    40 11.0 12.6 10.1
    50 3.8 10.1 8.0
    60 -0.6 8.4 6.7
    200 -0.4 2.5 2.0
    210 0.6 2.4 1.9
    220 1.7 2.3 1.8
    230 2.8 2.2 1.7

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
