DermaScope Polarizer HR 200x

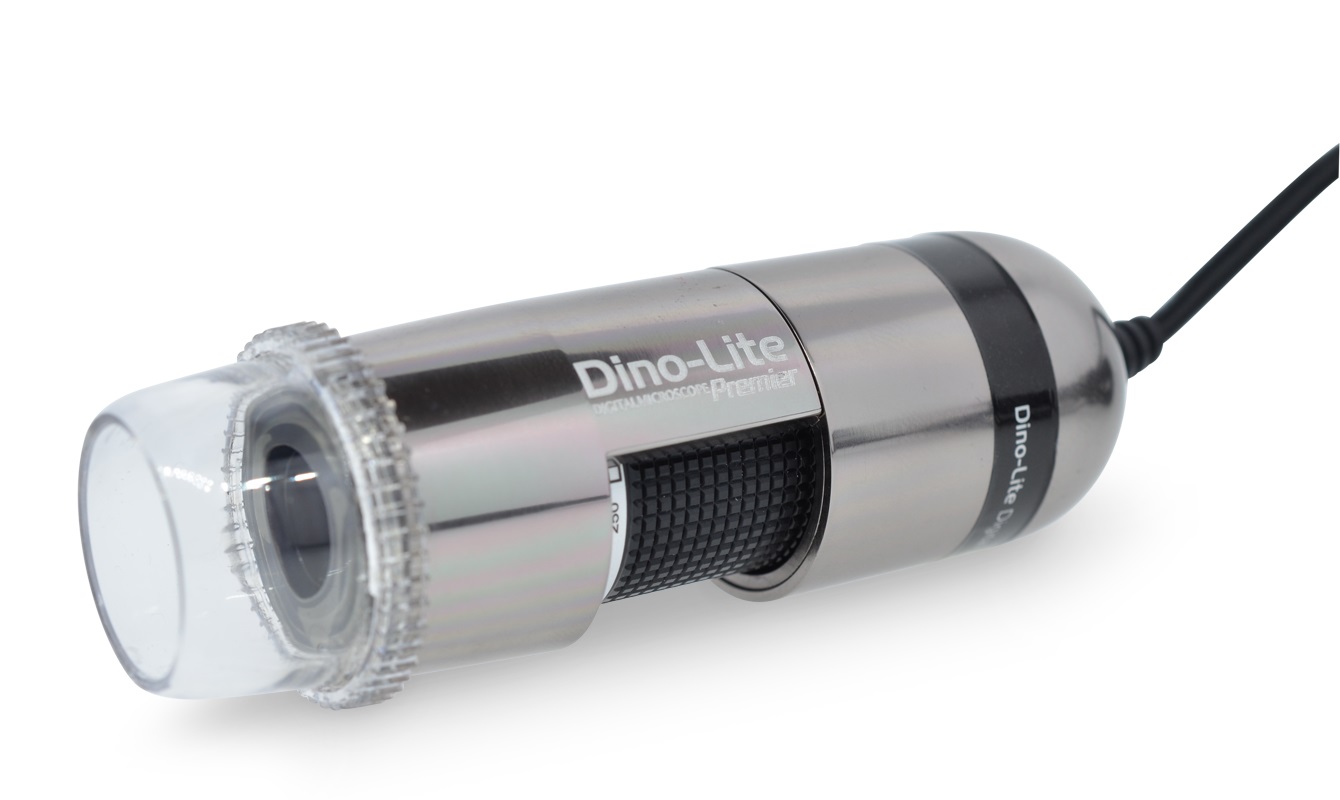

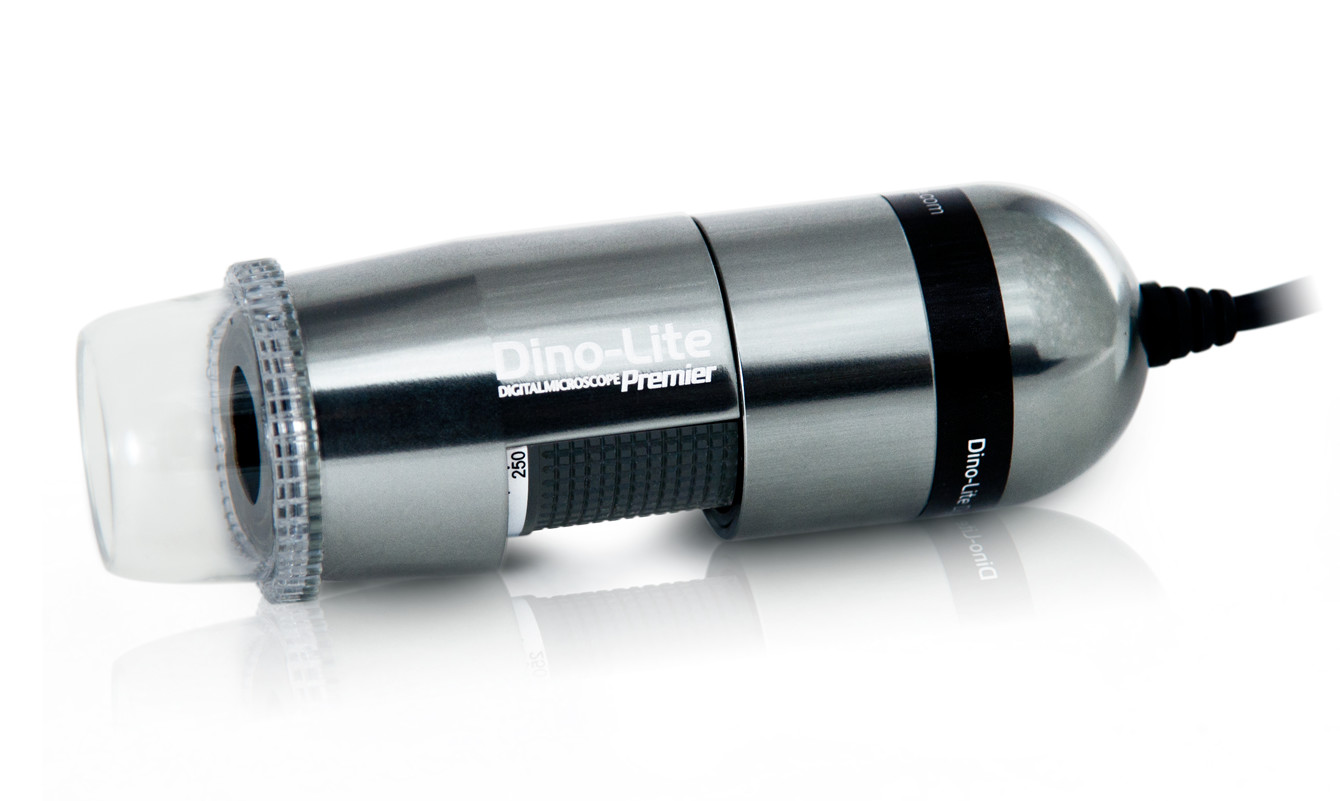

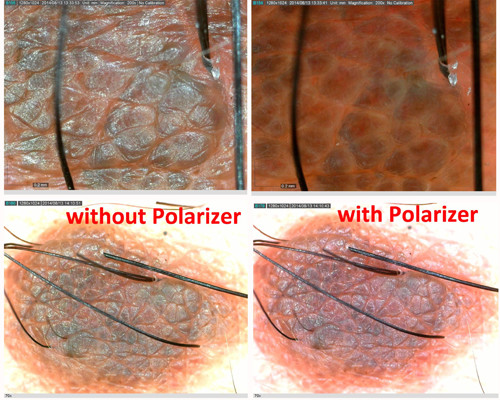

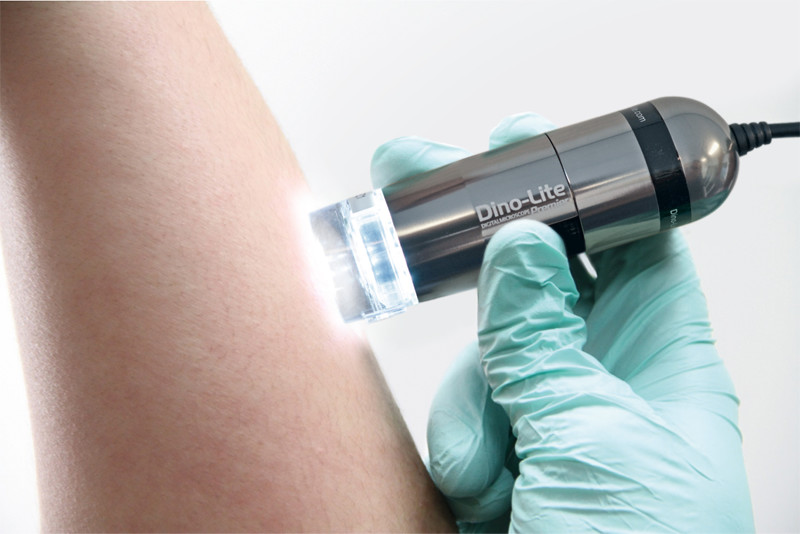

The Dino-Lite DermaScope Polarizer HR 200x (MEDL7DM) has a 5 megapixel camera and magnifications of 10 to 70x and around 200x. Also this model dermascope features a built-in and fully adjustable polarization filter to reduce the gloss effect of the skin. The MELD7DM also stands out from the MEDL4DM by the sleek metal casing.

  • 5 Megapixel resolution
  • Robust metal housing
  • 10-70x & 200x Magnification & Built-in polarizer
  • Medical Device Class 1

USB-2MeasurementMag 10 70 200

5-megapixel8-ledsMetal

PolariserI

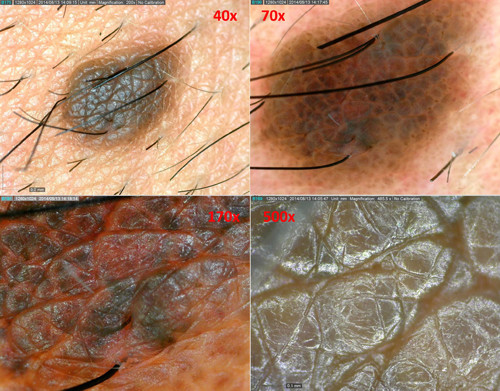

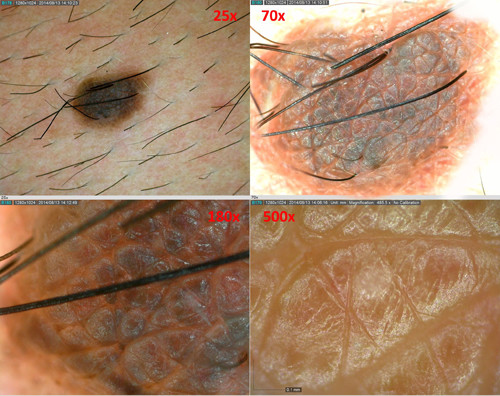

The Dino-Lite DermaScopes 200x models are special models at a much higher magnification, which is often used for specialized dermatological applications or, for example, the analysis of skin biopsies. Because of the high magnification of this model suspicious nevi can be analysed with more accuracy. In practice, this model is used for the analysis and interpretation of biopsies and other preparations, in short, more for laboratory research.

Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 10x ~ 70x, 200x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: Regulatory approval: Medical Device Class 1 – According to Directive 93/42/EEC modified 2007/47/EC
  • Package contents: Microscope, Carry pouch, Software CD, Medical user manual, Calibration target.
