DermaScope Polarizer HR

DermaScope Polarizer HR

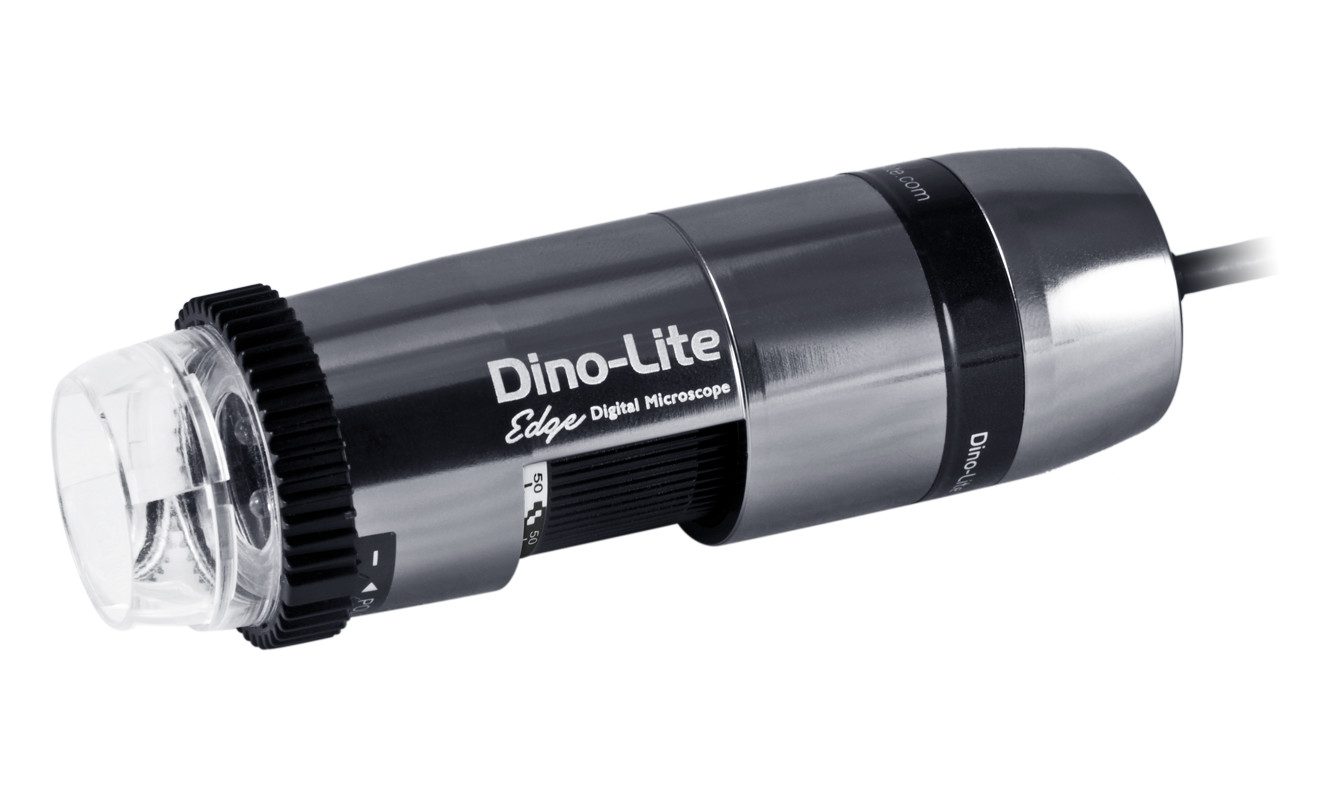

The Dino-Lite Dermascope Polarizer HR (MEDL7DW) has a 5 megapixel camera to capture sharper images with more detail, and features a built-in and fully adjustable polarization filter to greatly reduce the gloss effect of the skin.

  • 5 Megapixel resolution & Cutting-edge optics
  • Robust metal housing & Exchangeable caps
  • 10-50x Magnification & Built-in polarizer
  • Medical Device Class 1

USB-2MeasurementMag 10 50

5-megapixel8-ledsMetal

PolariserIMacroexch-cap

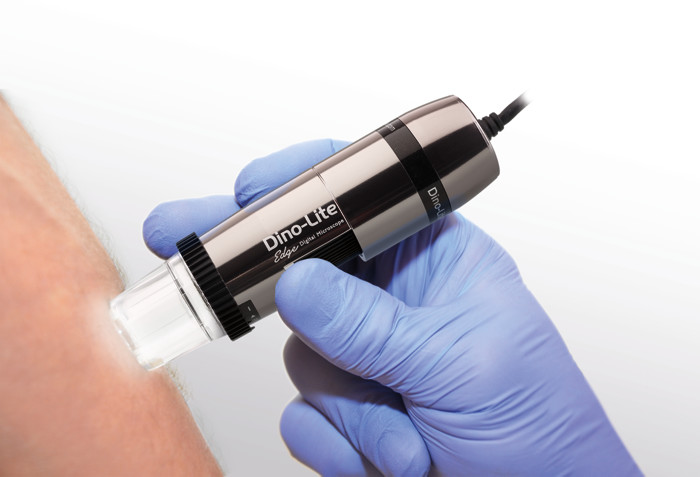

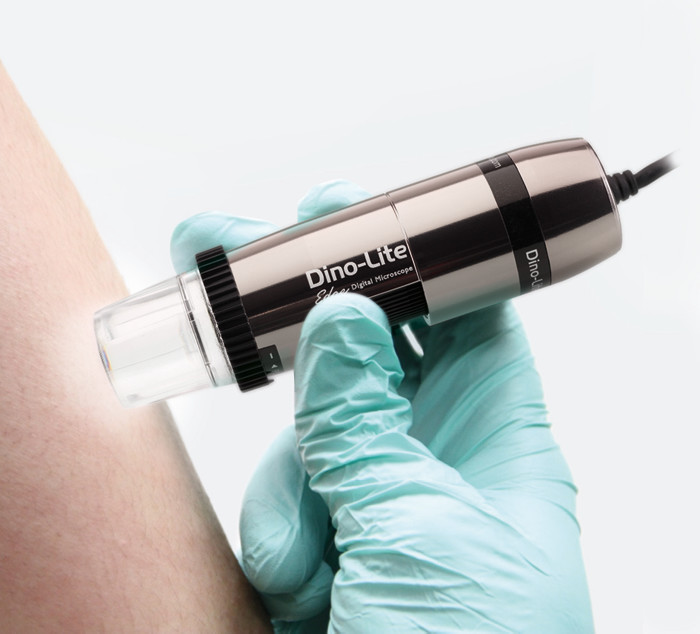

The MEDL7DW has two different levels of magnification (about 20x to about 45x) without the need to change the distance to the skin. If the extra cap is used, it is also possible to take an image with a larger surface area with a magnification of approximately 10x. The MEDL7DW also stands out from the MEDL4DW by the sleek metal casing. The Dino-Lite DermaScope® Polarizer HR is suitable for every dermatologist, but is usually purchased in the practice which places extra demands on the equipment and wants to have the latest features and capabilities.



Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 10-50x
  • Working Distance: Standard
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: Yes
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Video, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: Built-in polarizer
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: Regulatory approval: Medical Device Class 1 – According to Directive 93/42/EEC modified 2007/47/EC
  • Package contents: Microscope, Carry pouch, Software CD, Medical user manual, Calibration target, Front cover box.
