AM4116T

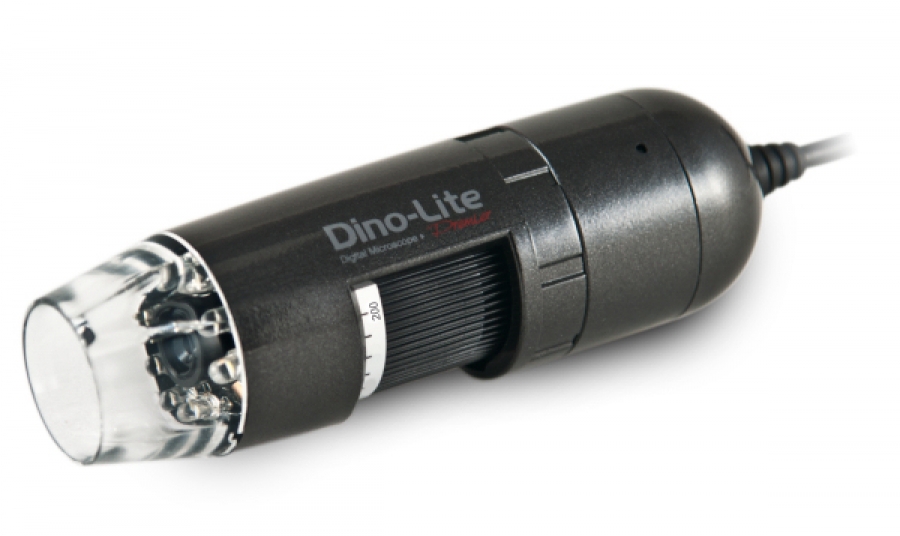

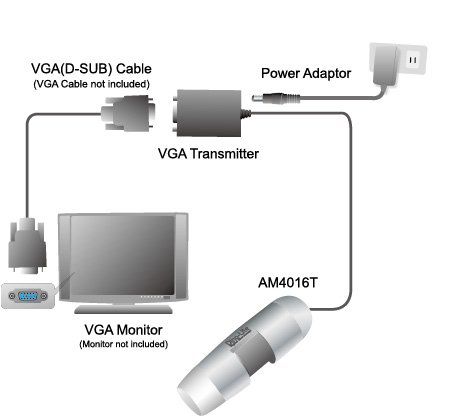

The Dino-Lite AM4116T connects directly to a VGA screen via a VGA (D-SUB) connector. It offers a high frame rate of up to 60fps at 800x600 resolution and has enhanced low light visibility so you can see clearly in any situation. The AM4116T is the ideal choice in situations, where real time images are vital. The LEDs can be switched on and off by using the MicroTouch sensor on the microscope.

Additional Info

  • Resolution: 800x600pixels
  • Magnification: 10x ~ 60x, 200x
  • Working Distance: Standard

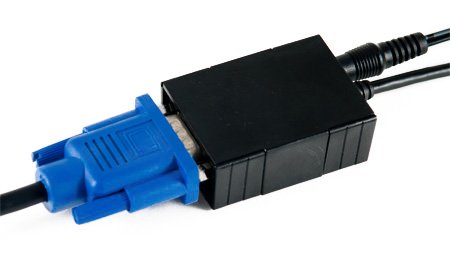

  • Interface: VGA (D-SUB) Connector
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Composite
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Not applicable
  • Video Frame Rate: Up to 60 frames-per-second
  • Measurement: No
  • Calibration: No
  • Filter/Diffuser: None
  • Compatibility: Not applicable
  • Software: None
  • JPEG Codec: None
  • Special:
    Power input 100~240V, 50/60 Hz (adapter included)
    Output adapter DC 5V, 800 mA
    Working temp -10°C ~ 50°C
  • Field of View:
    M WD FOV (x) FOV (y)
    20 51.7 21.0 15.7
    30 24.1 14.0 10.5
    40 11.0 10.5 7.9
    50 3.8 8.4 6.3
    60 -0.6 7.0 5.2
    200 -0.4 2.1 1.6
    210 0.6 2.0 1.5
    220 1.7 1.9 1.4
    230 2.8 1.8 1.4

    M = magnification rate, WD = working distance, FOV = field of view, Unit = mm
