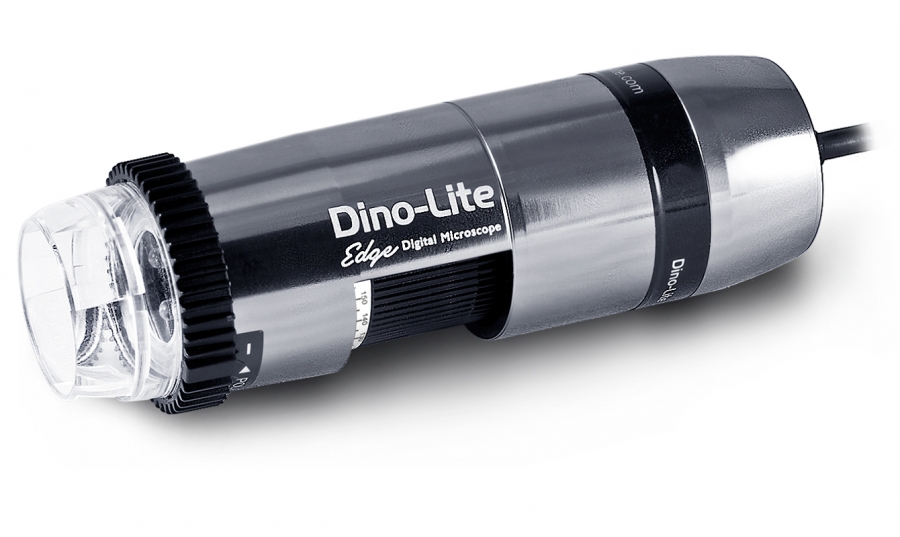

AM7515MZTL - Edge

With the use of the latest, cutting-edge optics, a brand new 5 megapixel sensor and several special features such as Flexible LED Control (FLC) and full aluminum body, the Dino-Lite AM7515MZTL is a marvel of technology and the best choice for the high-demanding professional. The Dino-Lite AM7515MZTL offers superb image quality and color reproduction in a robust, compact and appealing housing.


USBFLCMag-10-140

Metal5 megapixelAMR

PolariserILong-W-distanceexch-cap


The AM7515MZTL is part of the Long Working Distance (LWD) range and with its Long Working Distance and magnification range from 10 – 140x, it is suitable for a wide range of applications where extra distance to the object or a larger field of view is required.

The extra working distance and larger field of view make this model an ideal solution for tasks such as repair, rework or assembly or for working with bulky or fragile objects that cannot be touched. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The AMR function is of particular importance when the measurement functions are frequently used.

The main features of the AM7515MZTL are:
5 Megapixel Edge sensor, Long Working Distance (LWD) 10-140x magnification, larger Field Of View (FOV) integrated polarizer, aluminum housing, Automatic Magnification Reading (AMR), Flexible LED Control (FLC), extensive measurement functions, Calibration, exchangeable front caps and more.

Additional Info

  • Resolution: 2592x1944pixels (5MP)
  • Magnification: 10-140x
  • Working Distance: Long Working Distance
  • Interface: USB 2.0
  • Nr. of LED's: 8
  • LED on/off switchable: Yes
  • LED color: White
  • Material: Full aluminium alloy body
  • Exchangeable caps: No
  • Microtouch: Yes
  • Scroll lock: Yes
  • Output: Picture, Time-lapsed video
  • Video Frame Rate: Up to 30 frames-per-second
  • Measurement: Yes
  • Calibration: Yes
  • Filter/Diffuser: IR cut-filter >650 nm
  • Compatibility: Windows XP / Vista, Windows 7 / 8 / 10, MacOS [see compatibility chart]
  • Software: DinoCapture for Windows, DinoXcope for MacOS
  • JPEG Codec: None
  • Special: None
  • Field of View:



    Magnification Rate Working Distance*  Field of View(x)  Field of View(y)  Depth of Field
    Listed values may differ slightly
    * Without front cap     Unit = mm
    10 234.5 39.0 31.2 12
    20 112.5 19.5 15.6 4.5
    30 72.5 13.0 10.4 3.1
    40 54.5 9.8 7.8 1.8
    50 43.5 7.8 6.2 1.2
    60 37.5 6.5 5.2 0.9
    70 33.7 5.6 4.5 0.6
    80 31.3 4.9 3.9 0.5
    90 29.9 4.3 3.5 0.37
    100 29.2 3.9 3.1 0.28
    110 29.1 3.5 2.8 0.22
    120 29.3 3.3 2.6 0.17
    130 29.8 3.0 2.4 0.12
    140 30.5 2.8 2.2 0.09
  • Package contents: Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
