MS36B

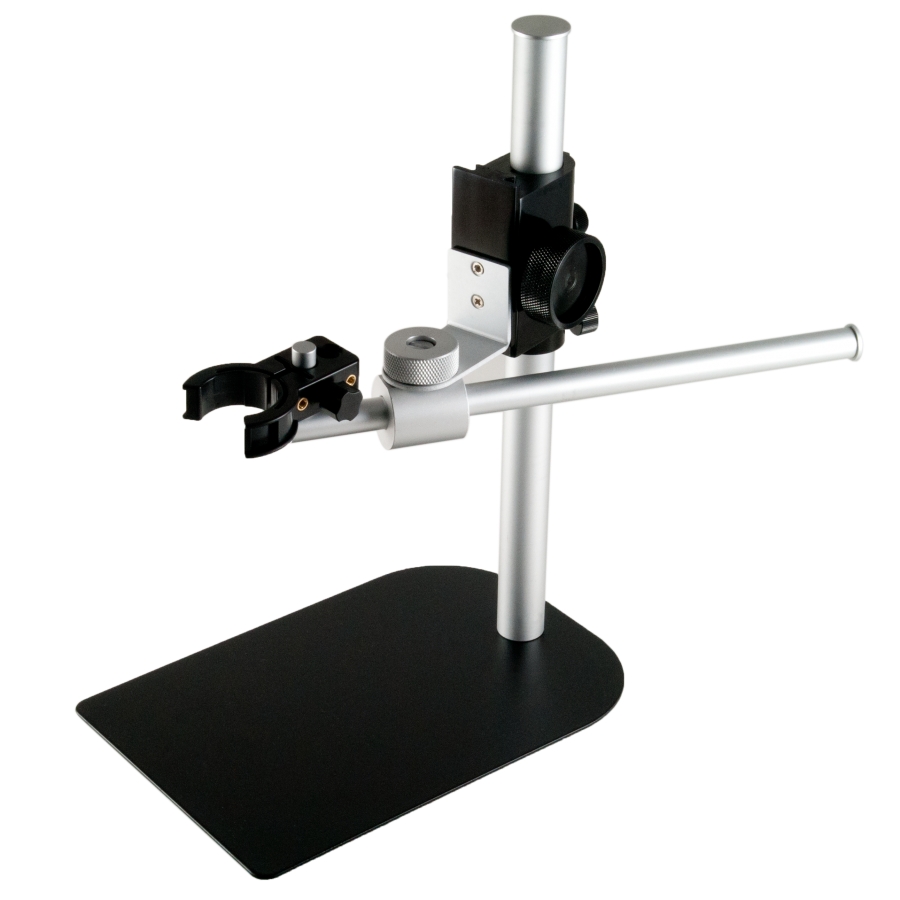

Vertical pole stand with focusing holder and boom arm.

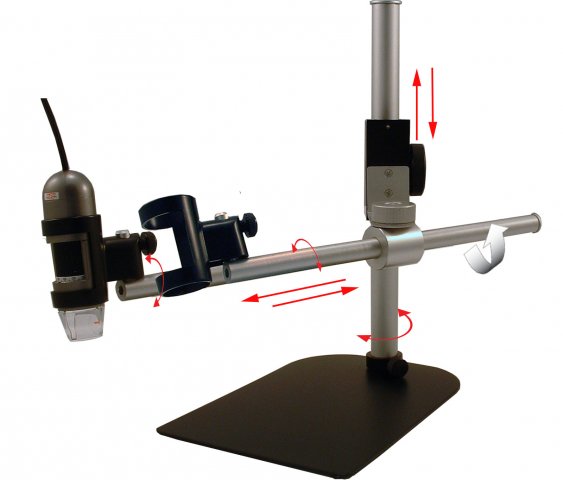

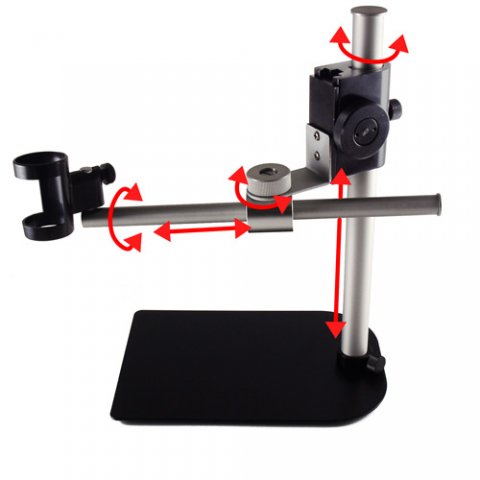

This robust and versatile pole stands provides an extremely flexible stand solution for the Dino-Lite microscope range. The focus block is positioned along the pole by way of a thumbscrew and at its maximum height provides up to 23cm of working distance. A fine focus wheel on the side of the focus block provides up to 50mm of fine height adjustment. The additional feature of a boom arm provides for up to 32cm of horizontal reach as well as 360 degree rotation of the microscope.

The MS36B is manufactured from a combination of resilient stainless steel and lightweight recycled aluminum making it very portable.

Additional Info

  • Unit dimensions (WxLxH): 12,7 x 20,7 x 30,5 cm
  • Other: Vertical pole can be extended with MS30X extension kit.

Image Gallery
